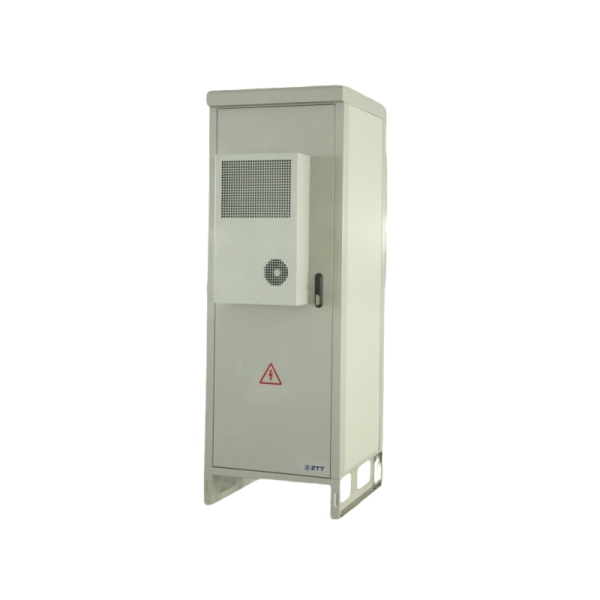

Integrated Energy Cabinet

The Integrated Energy Cabinet combines multiple functional units in a single cabinet and supports multiple energy inputs and outputs. Its modular design provides high efficiency, energy savings, and flexible power management for telecommunications applications.

IP55 protection, dust-proof and water-resistant, suitable for harsh outdoor environments
Wide temperature range, stable operation from -20°C to +55°C
Modular hot-swappable design, rectifier modules and batteries replaceable without power interruption
Smart thermal management, variable-speed fans / DC air conditioner to reduce auxiliary power consumption
Fast deployment, factory pre-assembled, plug-and-play on site
Multi-energy support, compatible with mains, solar PV, and battery hybrid power
Remote monitoring, dry contact / SNMP / Modbusintegration with RMS

Items	Spec.
Outside Dimensions	2200mm (H) x 750mm (W) x 750mm (D) (with 200mm base, excluding projections)
Structure and Material	Sandwich panel construction, high quality steel plate
Installation space	≥40U, 19inch rack
Access	Front
Door	3-point lock, integrated cooling system
Color	RAL7035
Protection class	IP55
Cooling system	DC Air Conditioner, DC1500W
Installation	Floor mounting

Urban macro sites: rooftop or street-mounted BBU+RRU/AAU power supply
Rural/wide-coverage sites: hybrid solar+battery+diesel for unreliable grid
Highway/railway corridors: long-haul coverage with unattended sites
Remote mining/oilfield sites: off-grid operation with solar+diesel+battery
Island/harsh-environment sites: high IP rating for extreme conditions
