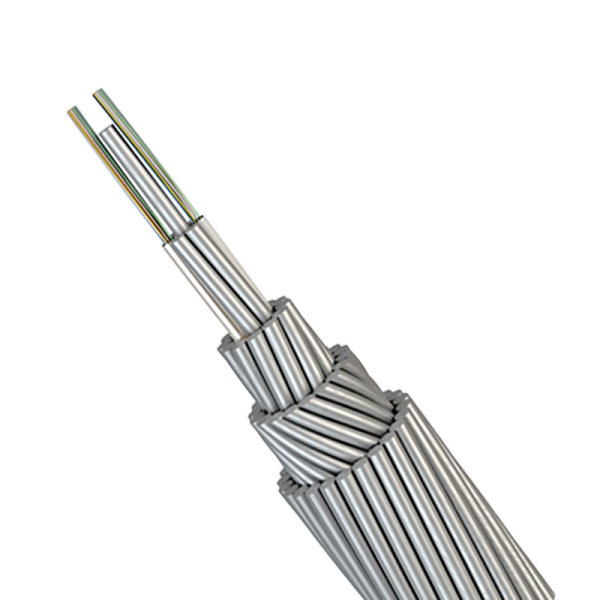

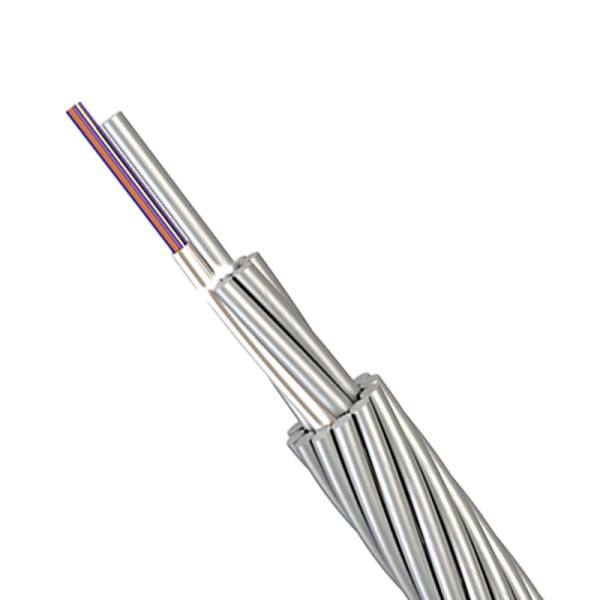

High Strength OPGW

Suitable for large wind areas, heavy icing, and large crossing lines of various voltage levels.

(1)OPGW has the advantages of high strength, large tensile-weight ratio, low sag, material saving and carbon reduction; (2)Excellent fiber length and stress-strain characteristics; (3)Solve the technical problem of increased sag and insufficient safety distance caused by overload in OPGW, and passed the appraisal in 2015.

Conductivity	Min.Tensile Strength of ACS
Conductivity	Normal	High Strength	Increased by
14	≥1590	≥1820	14.4%
20.3	≥1340	≥1590	18.6%
23	≥1220	≥1410	15.5%
27	≥1080	≥1310	21.3%
30	≥880	≥1080	22.7%
35	≥810	≥960	18.5%
40	≥680	≥810	19.1%
