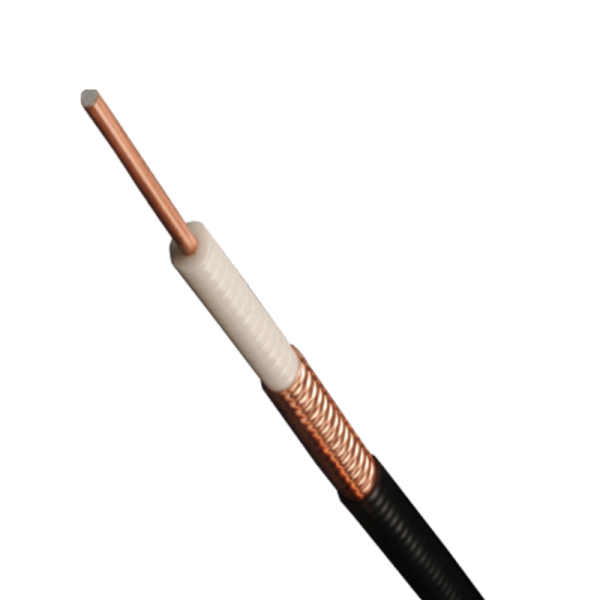

ZTT 50-ohm, super-flexible 1/2-inch coaxial cable with a corrugated copper outer conductor and a black LSZH flame retardant polyolefin jacket.
| Item | Diameter(mm) | Material |
| Inner conductor | 3.60±0.05 | Copper clad aluminum wire |
| Insulation | 9.80±0.20 | Foamed polyethylene |
| Outer copper conductor | 12.00±0.30 | Helical corrugated copper tube |
| Jacket | 13.30±0.25 | LSZH polyolefin |
| Item | Specification |
| Lay environment temperature | -20～+70℃ |
| Characteristics impedance | 50±2Ω |
| Velocity | 81% |
| Min. insulation resistance | 5000 MΩ·km @DC 500V ,1 minute |
| Capacitance | 83 pF/m |
| Dielectric strength | DC 2500V 1 minute |
| VSWR typical value | ≤1.20@820~960MHz |
| ≤1.20@1710~2500MHz |
| Frequency(MHz) | Attenuation(dB/100m) |
| 100 | 3.31 |
| 200 | 4.84 |
| 300 | 5.90 |
| 400 | 6.80 |
| 450 | 7.20 |
| 800 | 10.20 |
| 900 | 10.70 |
| 1000 | 11.30 |
| 1800 | 15.60 |
| 2000 | 16.00 |
| 2200 | 17.30 |
| 2500 | 18.60 |
| 2700 | 19.70 |
| 3000 | 21.00 |
| 3500 | 22.10 |
| 3600 | 22.50 |
| 3800 | 23.00 |
| 4000 | 24.00 |
