Urban Rail Transit Traction Rectifier Transformer

Urban rail traction rectifier transformer with dual-split structure, low harmonics and Class VI heavy traction capacity.

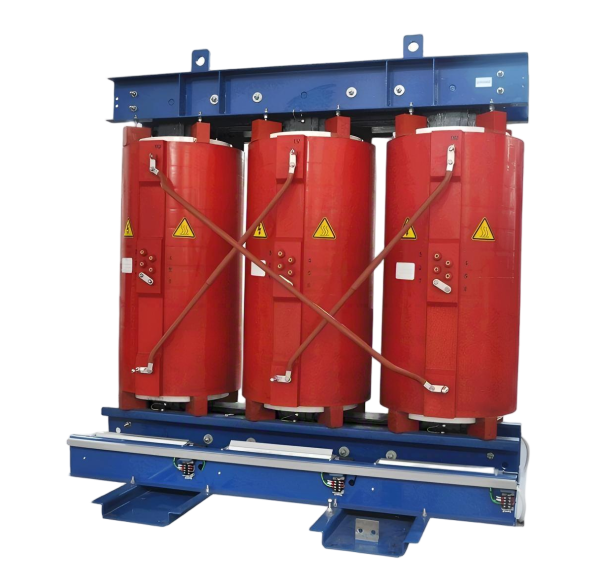

ZQSCB series transformers are built for urban rail transit. They adopt 30QG120 grain-oriented silicon steel core and flat copper windings with moisture, mold and salt spray resistance. The dual-split structure supports 12/24-pulse rectification with switchable ±7.5° phase shift to cut harmonics. They meet Class VI heavy traction loads and deliver smooth DC output to remove smoothing reactors.

No.	Item	Parameter Value
1	Core Material	30QG120 high-permeability grain-oriented silicon steel
2	Winding Material	Flat copper wire
3	Rectification Type	12-pulse / 24-pulse equivalent
4	Phase Shift	±7.5° (switchable via external wiring)
5	Load Rating	Class VI (heavy traction)
6	Insulation Class	Class H
7	Cooling Method	AN (Natural Air)
8	Voltage Regulation	Off-circuit tap changing, ±5% / ±2×2.5%
9	Key Advantages	Low harmonic distortion, high overload, smooth DC output, simplified system
10	Standard	IEC 60076, rail transit traction standards

Urban transit: Metro, light rail and suburban rapid transit traction systems
Heavy traction: Class VI heavy-duty rail rectifier applications
Peak-load rail lines: Lines with large traffic and load fluctuations
