Resin-insulated Dry-type Transformer

Up to 38.5kV / 25,000kVA epoxy resin-insulated dry-type transformer with vacuum-cast windings, featuring low loss, flame retardancy and strong short-circuit resistance.

This series covers rated voltage up to 38.5kV and capacity up to 25,000kVA. Windings are vacuum epoxy-cast with copper or aluminum options. The CRGO silicon steel core adopts 45° mitered joints and 5-step lap structure for low loss. Rubber cushion supports deliver excellent vibration damping and short-circuit withstand performance. It features flame retardancy, low noise, maintenance-free operation, strong overload capacity and reliable insulation under over-voltage.

No.	Item	Parameter Value
1	Rated Capacity	50 ~ 25,000 kVA
2	Rated Voltage	≤ 38.5 kV
3	Insulation Type	Epoxy resin cast (dry-type)
4	Cooling Method	AN (Natural Air) / AF (Forced Air)
5	Insulation Class	Class F / Class H
6	Core Structure	CRGO silicon steel, 45° mitered joint, 5-step lap
7	Winding Material	Copper or Aluminum
8	Protection Degree	IP00 / IP20 / IP23 (optional)
9	Standard	IEC 60076-11 / IEC 60726
10	Key Features	Low loss, flame retardant, low noise, strong overload & short-circuit resistance

High fire-safety sites: Commercial buildings, hospitals, schools, underground substations
Industrial & utility systems: 35kV distribution networks, industrial plants, heavy-load mining facilities
Harsh environments: High-humidity, coastal and polluted industrial areas

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Resin-insulated Dry-type Transformer

Related Products

Related products

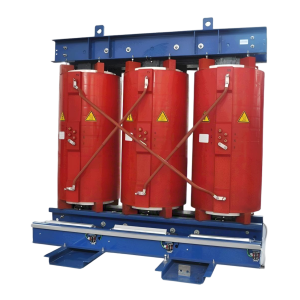

Urban Rail Transit Traction Rectifier Transformer
