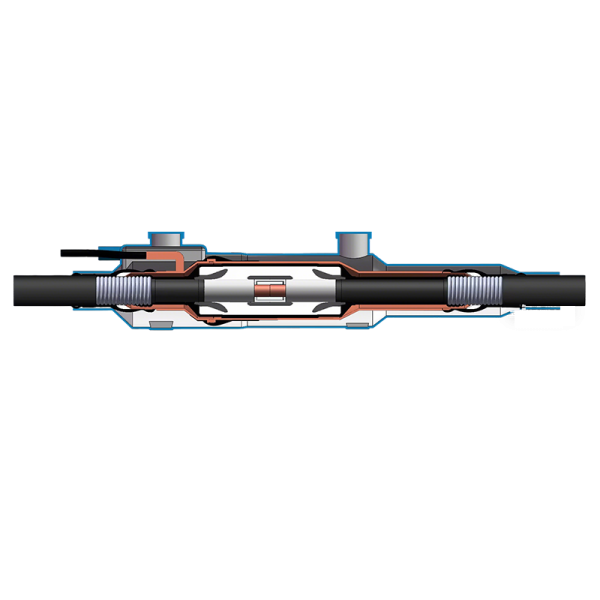

Applicable to connect the extruding HV cables each other, suitable for XLPE or EPR insulated cables with copper, aluminum or aluminum alloy conductors.
| Voltage （kV） | 170 |
| Insulation Diameter（mm） | Φ60～Φ95 |
| Cross section Area of cable conductor（mm2） | 240-2500mm² |
| The conductor connection method | Crimping Bolt shear |
| Testing items | Testing contents | value |
| AC withstand Test | Dry AC withstand test | 218kV 15min |
| Impulse test | Lightning impulse | 750kV, ±10 times |
| Current carrying capacity | Rate current Short-circuit current | By cable spec |
| Stress cone electrical performance | AC withstand test Partial discharge test | 218kV 30min As 131kV，≤5pC |
| Shield interruption test | Lightning Impulse test DC withstand test | 37.5kV,±10 times 25kV 1min |
The information of dimension and weight
The length with copper housing：1900mm，the weight with copper housing：105kg；
The length with copper housing/coffin box：2600mm，
the weight with copper housing/coffin box：280kg
Applicable to connect the extruding HV cables each other, suitable for XLPE or EPR insulated cables with copper, aluminum or aluminum alloy conductors.
