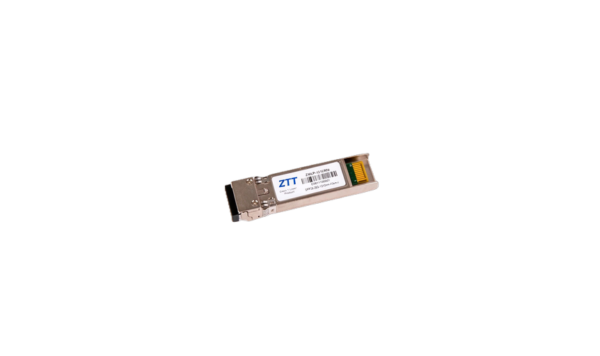

SFP28 25G Dual 1310nm 40km

The transceiver is intended for 40km reach service from 24.33Gb/s to 25.78Gb/s single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. The device is Class I laser safety compliant.

Up to 40km transmission distance
33Gb/s to 25.78Gb/s data links
Alimentation unique de 3,3 V
Low DC power consumption
Hot-Pluggable SFP28 footprint
High performance 1310nm DML laser
High sensitivity APDoptical receiver
Single Mode operation
BER < 5X10-5
Built-in CDR
Case Operating temperature ranges:Industrial:-40 to 85ºC，Commercial:0 to 70ºC
ROHS compliance

Part. No	Spécifications
Part. No	Paquet	Taux (Gbps)	Tx (nm)	P (dBm)	Rx	S (dBm)	Top (℃)	Reach (km)
ZMLP-131ERNC	SFP28	25.78	1310	0~+6	APD	<-19	0~+70	40
ZMLP-131ERNI	SFP28	25.78	1310	0~+6	APD	<-19	-40~+85	40
