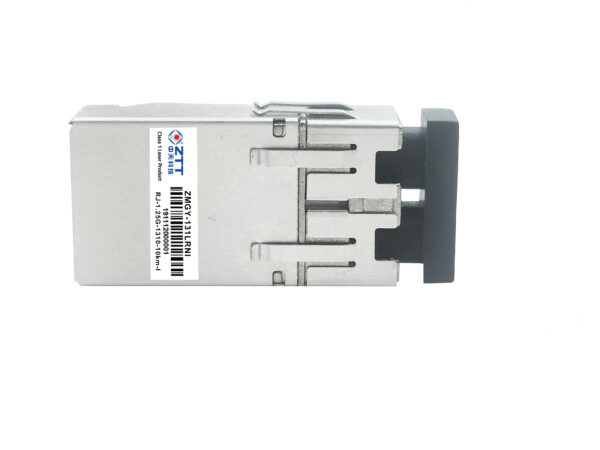

SFP 1.25G RJ45 100m

The transceiver is a small, hot-swappable RJ45 electrical port module, compliant with Gigabit Ethernet standards and SFP Multi-Source Agreement (MSA) standards,supporting 10M/100M/ 1000M transmission rate. CAT5 class network cable transmission distance of up to 100 meters, good electromagnetic compatibility, compatible with various brands of hosts, widely used in data centers and enterprise networks. Access to the PHY chip registers is via the I2C interface. Meet the certification requirements such as RoHS.

Up to 1.25Gb/s bi-directional data links
Compliant with IEEE 802.3z, IEEE 802.3u, IEEE 802.3ab
Compliant with SFP MSA
Hot-pluggable SFP footprint
Support 10/100/1000BASE-T operation in host systems
with SGMII interface
RJ-45 connector
Auto-sense MDI/MDIX
Single power supply 3.3V
Optional operating temperature range: 0~+70℃/-40~85℃
RoHS Compliant

Numéro de pièce	Spécifications
Numéro de pièce	Paquet	Taux (Mb/S)	Tc (℃)
ZEGP-SRNI	SFP	10M~1000M	-40~85
ZEGP-SRNC	SFP	10M~1000M	0~ 70
