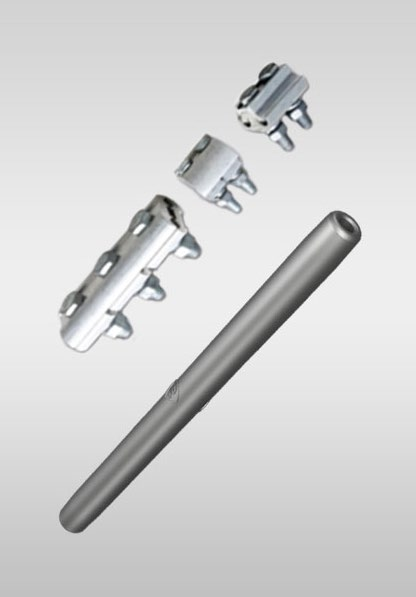

The splicing fittings are used to join kinds of bare conductors and lightning conductors, which bear the same electric load as conductors. Additionally, splicing fittings are generally divided into compression type and preformed type.

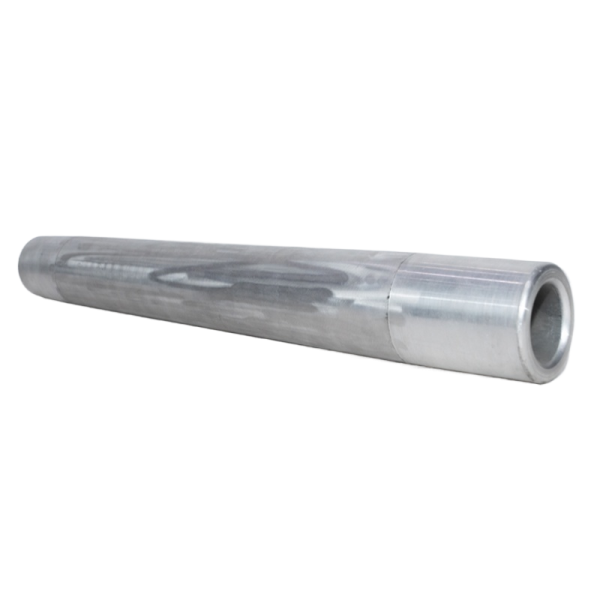

Splicing Sleeves for Steel Wire (Hydraulic Butt Joint）
| Catalog No. | Suitable Conductor | Dimensions (mm) | Slip Strength (kN) | Weight (kg) | Slip Strength (kN) | Weight (kg) |
| D | d | L | ||||
| JY – 35G | GJ – 35 | 16 | 8.4 | 220 | 45 | 0.25 |
| JY – 40G | GJ – 40 | 18 | 8.6 | 230 | 47.31 | 0.34 |
| JY – 50G | GJ – 50 | 18 | 9.6 | 240 | 60 | 0.34 |
| JY – 55G | GJ – 55 | 22 | 10.2 | 240 | 70 | 0.56 |
| JY – 70G | GJ – 70 | 22 | 11.7 | 290 | 80 | 0.61 |
| JY – 80G | GJ – 80 | 24 | 12.1 | 290 | 94.1 | 0.76 |
| JY – 100G | GJ – 100 | 26 | 13.7 | 340 | 123 | 1 |
