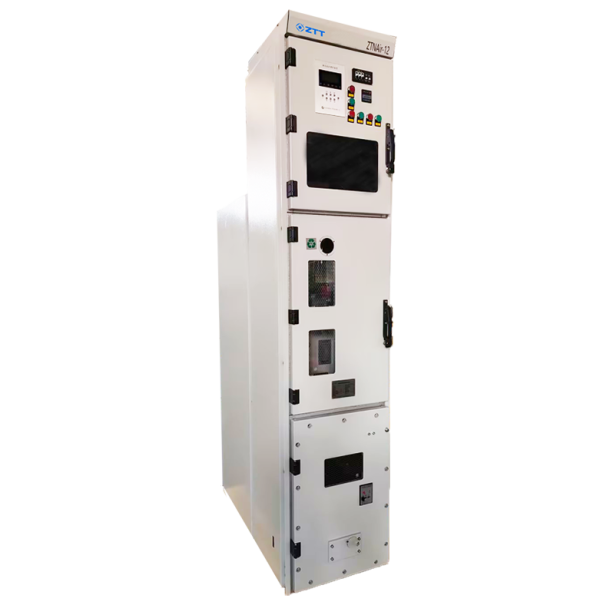

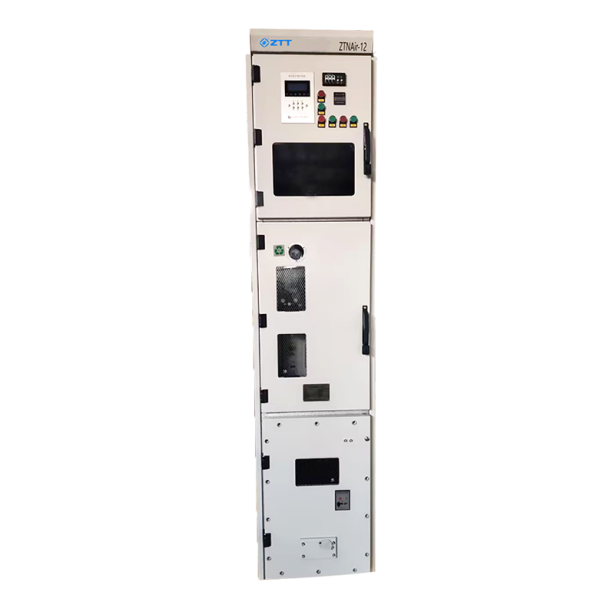

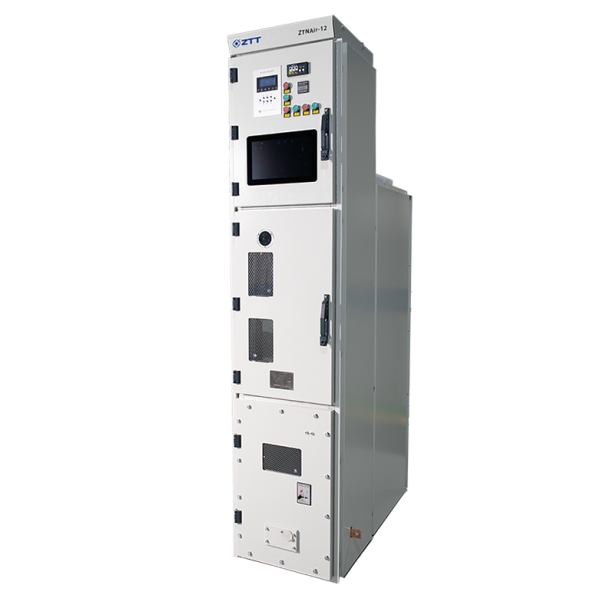

Eco-Friendly Gas-Insulated Switchgear（12kV)

The ZTNAir-12 series is an SF₆-free,modular, and fully sealed gas-insulated switchgear designed for medium-voltage distribution, control, and protection.It is widely deployed across utility grids, industrial facilities, and renewable energy applications.

Product Description

ZTNAir-12 series comprises fully-sealed gas-insulated HV switchgear conforming to IEC 62271-1 and GB/T 3906.Integrating VCBs, three-position disconnectors, earthing switches, CTs and VTs, it provides monitoring, control and protection for 10 kV networks. On short-circuit, overload or earth faults, the protective relay trips the breaker to clear the fault and safeguard the rest of the system; local/remote close-open operation is available via the control circuit, while CTs/VTs feed signals to protection and metering for real-time monitoring and data logging.

Product Advantages

Modular Compact Structure： Equipped with vacuum circuit breakers and three-position disconnectors; cabinet widths available in 550 / 600 / 800 / 1000 mm, depths of 1150 mm / 1450 (1650) mm. Complete five-safety mechanical interlocks effectively prevent mal-operation; the fully-sealed gas tank isolates live HV parts from the external environment.
Excellent Electrical Performance： Rated currents cover 630 A, 1250 A, 2500 A and 3150 A; rated short-circuit breaking currents of 31.5 kA and 40 kA, meeting the current-carrying and breaking requirements of distribution systems across different capacities.
Intelligent Management： Can integrate digital measuring & control instruments, wireless temperature monitoring, and gas-density monitoring modules (optional); supports communication protocols such as Modbus and interfaces with SCADA and distribution-automation systems to enable equipment status acquisition, fault alarm, and remote O&M.
High Safety Protection： Fully-sealed, fully-insulated gas tank isolates the equipment from external conditions such as humidity, dust and condensation. Equipped with a directional pressure-relief channel; the enclosure uses high-strength anti-corrosion panels to ensure reliable operation under harsh conditions.
Green & Eco-Friendly： Uses dry air or N₂ as the insulating medium — no SF₆ greenhouse gas — eliminating the compliance costs of SF₆ recovery, leak detection, and supporting the achievement of the “dual-carbon” goals.

Key Technical Parameters of ZTNAir Switchgear

Feature	unit	Specification
Rated voltge	kV	12
Rated frequency	Hz	50/60
Rated power frequency withstand voltage(1min)	kV	42（main circuit,phase-to-ground & phase-to-phase） / 48（breaker isolation gap,across open contacts）
Rated current	A	630	1250	1250	2500	3150
Rated short circuit breaking current	kA	20	25	31.5	31.5	40
Rated peak withstand current	kA	50	63	80	80	100
Rated short-circuit duration	s	4
Mechanical endurance (3-position disconnector / circuit-breaker)	times	5000/20000			3000/10000
Insulating gas	/	dry air or N₂
Degree of protection (cabinet / gas tank)	/	IP41/IP67
Rated filling pressure	MPa	0.02
Gas leakage rate	per year	≤0.01%
Enclosure dimensions(WxDxH)mm	mm	550/600/800/1000×1150/1450(1650)×2400

It is widely used in urban distribution networks, industrial and mining enterprises, rail transit, and new-energy projects, for high-voltage power distribution, control, and protection.

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Eco-Friendly Gas-Insulated Switchgear（12kV)

Related Products

Related products

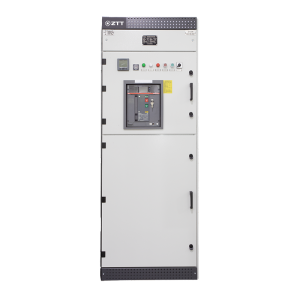

Low Voltage Switchgear (0.4kV~0.69kV)

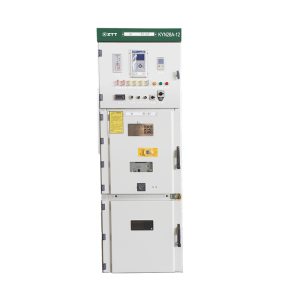

Air-Insulated Switchgear（up to 24kV)
