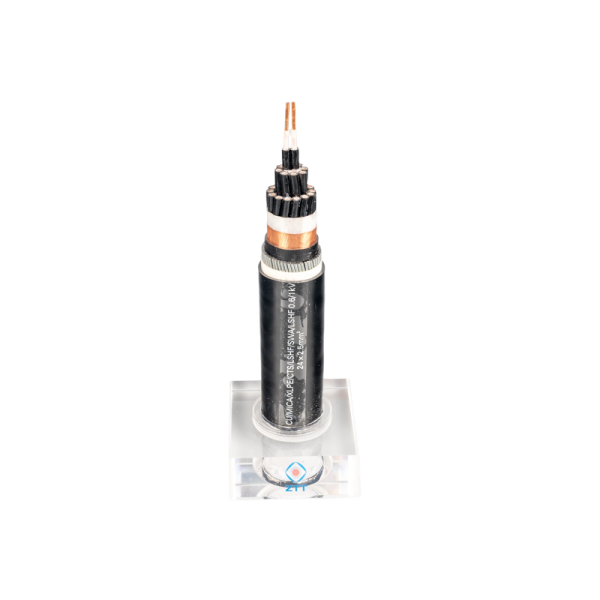

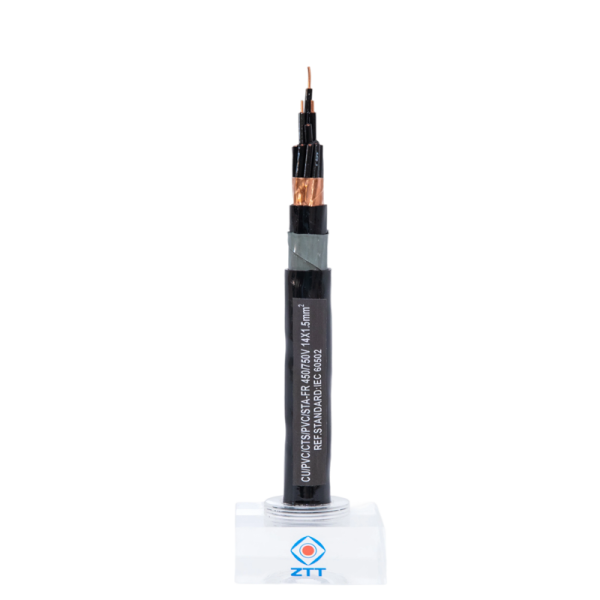

Screened Armored Control Cable

1. STANDARD TAXONOMY

Cables are offered accords with different standards, IEC 60227, IEC 60502-1, GB/T9330, AS/NZS 5000.3

UV Resistance to UL 1581

Flame Retardant Cat.A,B,C to IEC 60332-3-22 & 23 & 24

Fire Resistant to IEC 60331

Low Smoke to IEC 61034-1 & 2, Halogen Free to IEC 60754-1 & 2

2. CONSTRUCTION

Conductor: Copper

Insulation: Polyvinyl Chloride(PVC), Cross-linked polyethylene(XLPE)

Filler: Polypropylene(PP)

Wrapping: Non-hygroscopic tape

Screen: Copper Wire, Copper Tape

Armor: Steel Wire, Steel Tape

Sheath: Polyvinyl Chloride(PVC), Polyethylene(PE), Low Smoke Zero Halogen compound(LSZH)

3. CHARACTERISTCS

PVC insulation:

1. Cable conductor: Max long-term temp 70℃, max short-circuit temp 160℃ (≤5s).
2. Cable layingtemp:≥0°C
3. Cable bending radius: Unarmored cables or flexible cables with screen≥6×OD, armored cables or copper tape screen cables ≥12×OD

XLPE insulation:

1. Cable conductor: max long-term temp 90℃, max short-circuit temp 250℃ (≤5s).
2. Cable laying: ambient temp ≥0°C
3. Cable bending radius: Unarmored cables or flexible cables with screen≥8×OD, armored cables or copper tape screen cables ≥12×OD
