PVC cable compound

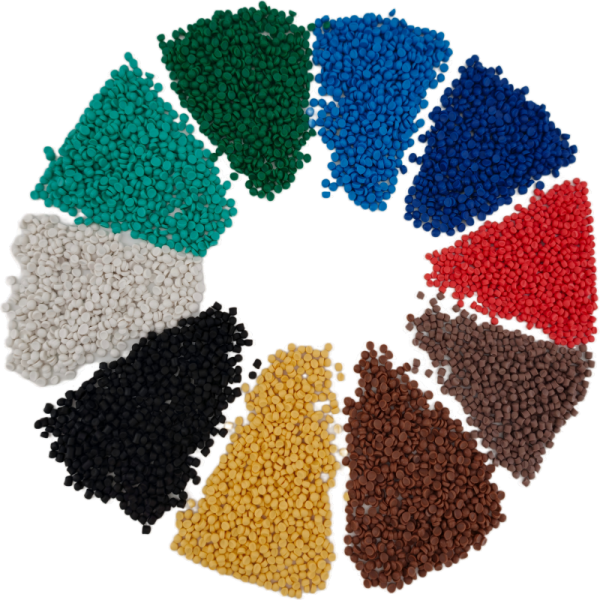

Flexible PVC Compound for Cables

This cable compound offers excellent mechanical properties, including high tensile strength, good flexibility, and resistance to deformation. It also provides a smooth and glossy extrusion surface, free from sharkskin, melt fracture, or die deposit. In addition, it demonstrates outstanding thermal stability, ensuring safe processing within a wide temperature window and resistance to degradation during prolonged extrusion.

No.	Test Item		Unit	Test Value of DJ901
1	Density		g/cm³	1.42
2	Tensile Strength		MPa	17.8
3	Elongation at Break		%	258
4	Brittleness Temperature by Low Temperature Impact		℃	-15
5	Heat Aging	Aging Condition	–	135℃×240h
		Tensile Strength after Aging	MPa	16.3
		Change Rate of Tensile Strength	%	-8.4
		Elongation at Break after Aging	%	224
		Change Rate of Elongation at Break	%	-13.1
		Mass Loss after Heat Aging	g/m²	13
6	Heat Deformation		%	31
7	Thermal Stability Time at 200℃		min	200
8	Volume Resistivity at 20℃		Ω·m	4.5×10¹²
9	Volume Resistivity at Operating Temperature (Test Temp: 95℃)		Ω·m	5.2×10⁹
10	Dielectric Strength		MV/m	20
