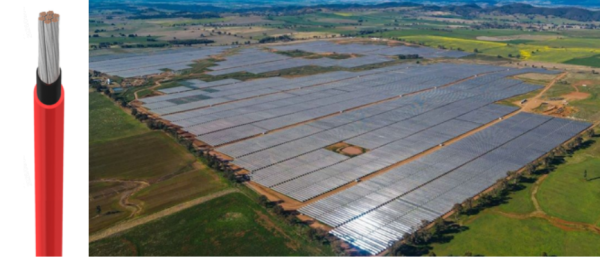

Photovoltaic Cable, Solar Power Cable

The photovoltaic cable is specially developed for the DC system of photovoltaic power generation, used for the DC circuit connection between photovoltaic modules, busbars, and inverters. The conductor is made of multi-stranded tin-plated soft copper, and the insulation sheath is made of irradiated cross-linked polyolefin material. The double-layer protective structure can be laid outdoors for a long time, and it can provide TUV, CPR, and other domestic and foreign certifications to meet the needs of photovoltaic projects at home and abroad.

Weather resistance and anti-aging: Excellent resistance to ultraviolet rays, ozone, and salt fog corrosion, suitable for long-term outdoor exposure, the design life is matched with the photovoltaic module to reach 25 years.

Wide temperature range performance: working temperature -40°C to +90°C, conductor short-term temperature resistance can reach 120°C, can operate stably in severe cold and high temperature areas.

Excellent mechanical properties: anti-tearing, wear resistance, anti-crushing, adapt to the complex laying environment of the site; the cable is soft, the bending radius is small, and the installation and construction are convenient.

Safety and environmental protection: halogen-free low smoke flame retardant materials, low smoke and non-toxic when exposed to fire, reducing the risk of fire.

Electrical reliability: tin-plated copper conductors are resistant to oxidation and have good conductivity; low core deviation process, stable insulation performance, and strong DC withstand voltage capability.

Compliance and certification: meet the mainstream standards of national and European standards, support TUV, CPR and other certifications, and meet the requirements of domestic and overseas project access.
