Suitable for transmission and distribution system with rated voltage up to 26/35kV.

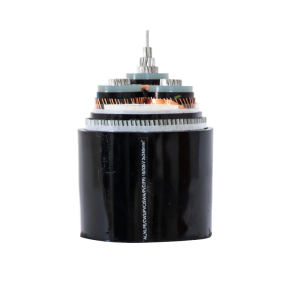

The MV screened armored cable provides both reliable electromagnetic interference protection and robust mechanical resistance, making it suitable for direct burial or installations in demanding environments.
Cables are offered accords with different standards, IEC 60502-2, HD, BS, VDE, NF C, NBR, AS/NZS, IRAM, GOST.

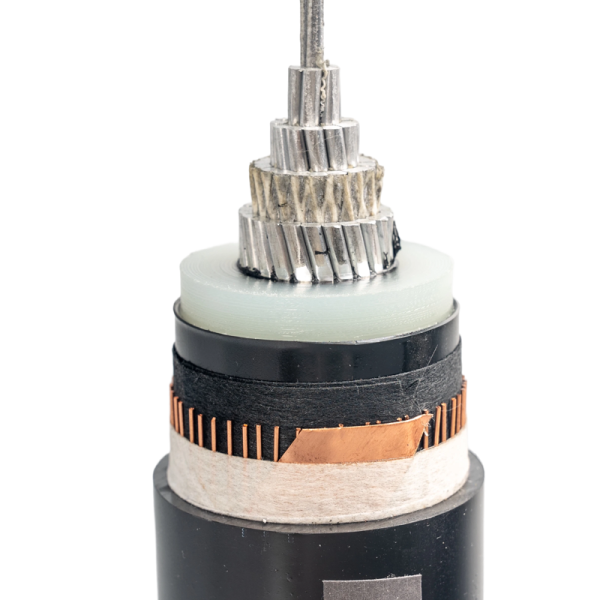

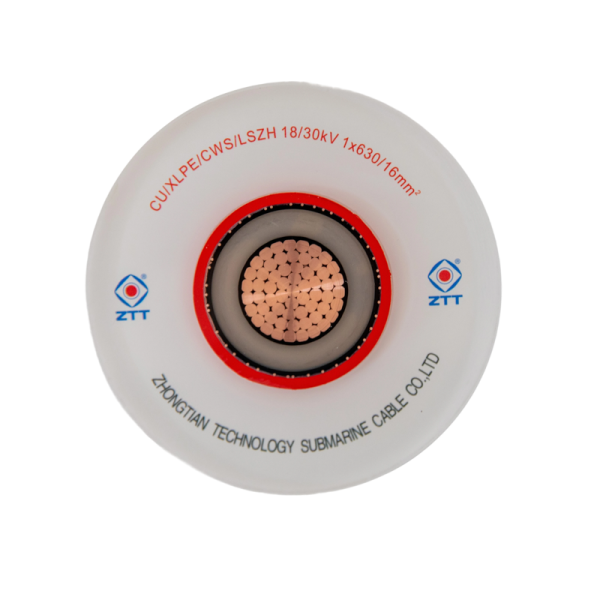

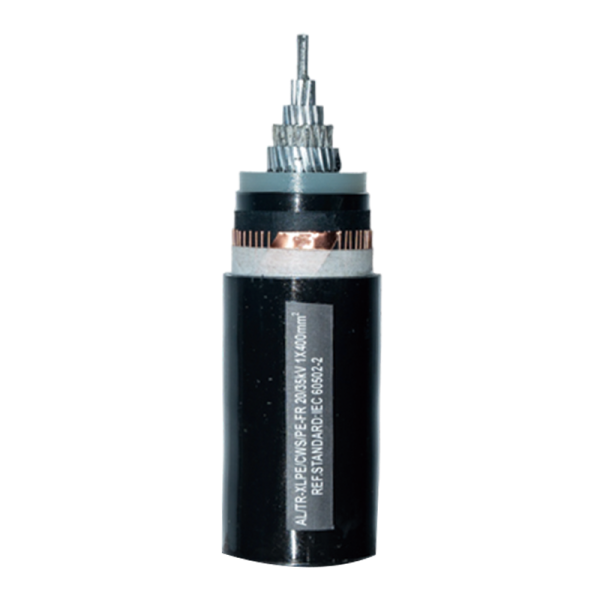

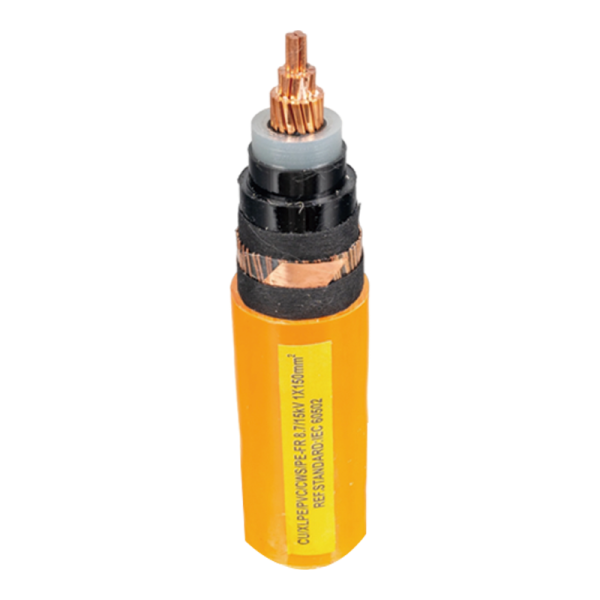

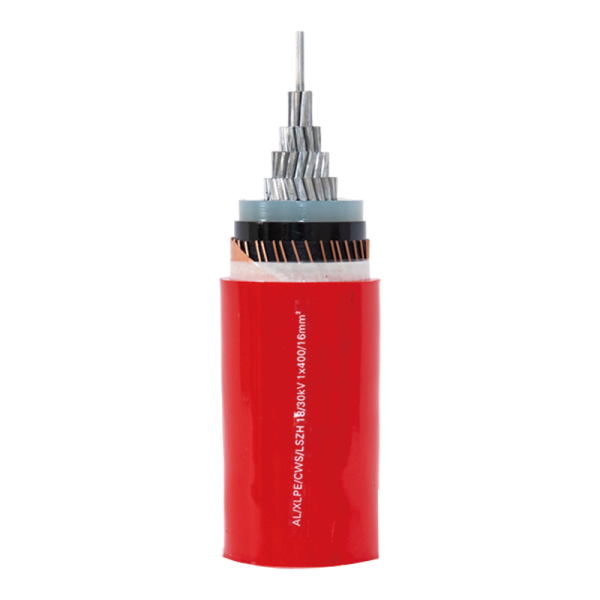

Conductor: Copper/aluminum wire, class 2 stranding
Conductor screen: Extruded semiconducting layer
Insulation: TR-XLPE or XLPE
Insulation screen: Extruded semiconducting layer
Metallic screen: Optional of copper wire, copper tape, aluminum wire or copper wire+copper tape (helically applied)
Outer sheath: Optional of Polyvinyl Chloride(PVC), Polyethylene(PE), Low Smoke Zero Halogen compound(LSZH)
Max. continuous temperature in operation: 90℃
Min. installation ambient temperature: 0℃
Min. bending radius: Single core 20 × OD, three core 15 × OD
ZTT MV underground power cables feature excellent electrical properties and are designed for power transmission and distribution systems Optional features such as flame retardancy, water blocking, and termite resistance are available upon request.
As unarmoured cables, they are suitable for installation indoors, in tunnels (secured to racks), cable trenches, concrete conduits, and for direct burial in loose soil where appropriate laying methods are observed. These cables are not intended to withstand external tensile or compressive mechanical forces.
