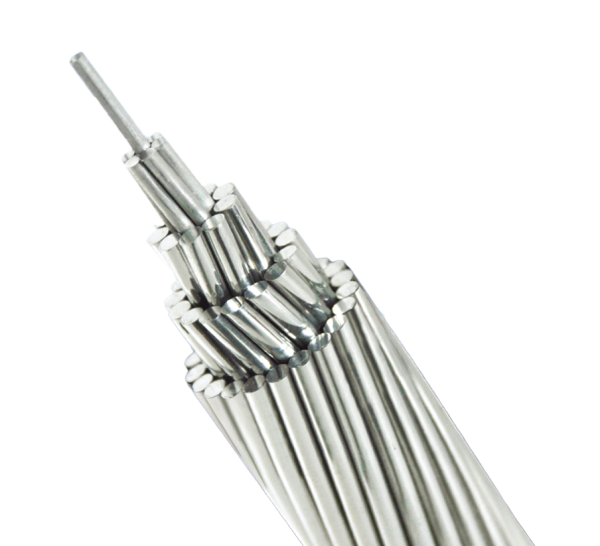

High Conductivity Thermal Resistant Aluminum Alloy Conductor Aluminum-clad Steel Reinforced
Characteristics: -High conductivity thermal resistant aluminum alloy, continuous working temperature up to 150℃. -1.5 times current-carrying capacity, and low electrical loss. -Cost effective and convenient construction.Standards:
| IEC 61089 | Round wire concentric lay overhead electrical stranded conductors |
| EN IEC 62641 | Conductors for overhead lines – Aluminium and aluminium alloy wires for concentric lay stranded conductors |
| EN IEC 63248 | Conductors for overhead lines – Coated or cladded metallic wire for concentric lay stranded conductors |
| EN 50182 | Conductors for overhead lines – Round wire concentric lay stranded conductors |
| Other international standards according to customers’ requirements | |
| Code Name | Stranding of Al (Nos./mm) | Stranding of ACS (Nos./mm) | Nominal Diameter of Conductor (mm) | Nominal Weight (kg/km) | Rated Tensile Strength (kN) | Max. DC Resistance @20℃ (Ω/km) | Current Capacity at 150℃ (A) |
| TACSR/AW-210/35 | 26/3.22 | 7/2.50 | 20.38 | 812.1 | 75.5 | 0.1314 | 944 |
| TACSR/AW-300/70 | 30/3.60 | 7/3.60 | 25.20 | 1315.4 | 130.7 | 0.0891 | 1226 |
| TACSR/AW-500/35 | 45/3.75 | 7/2.50 | 30.00 | 1600.8 | 107.3 | 0.0578 | 1608 |
| TACSR/AW-630/55 | 48/4.12 | 7/3.20 | 34.30 | 2141.1 | 169.3 | 0.0446 | 1909 |
| TACSR/AW-630/80 | 54/3.87 | 19/2.32 | 34.80 | 2290.3 | 197.5 | 0.0444 | 1922 |
| TACSR/AW-1440/120 | 84/4.67 | 19/2.80 | 51.36 | 4759.4 | 369.2 | 0.0199 | 3194 |
| Other designs according to customers’ requirements | |||||||
Note: Current capacity is based on ambient temperature 40℃, Wind velocity 0.5m/s, Wind direction: 0 Degree, Solar radiation 0.1w/cm2, Absorptivity of conductor surface 0.9.
Medium distance overhead line, suitable for transmission of high current carrying capacity. Small size low loss thermal conductor meets peak-capacity requirement, applied instead of large-size ACSR for renewable energy transmission line. This reduces comprehensive investment costs by 15%-20% annually, considering conductor, fittings, tower and transmission loss.
