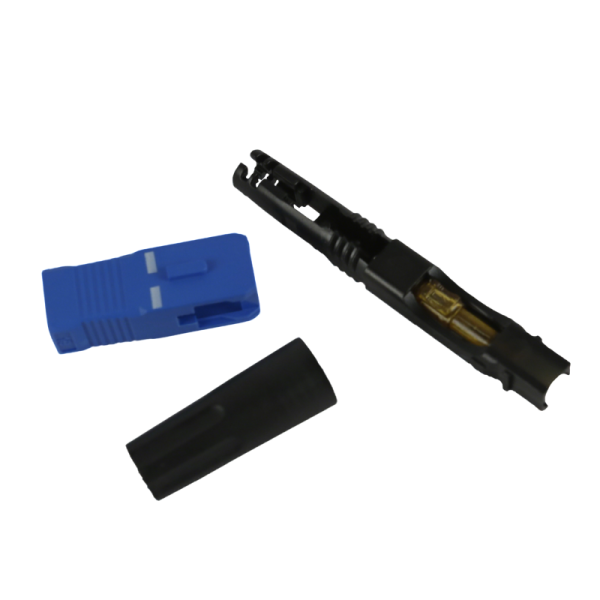

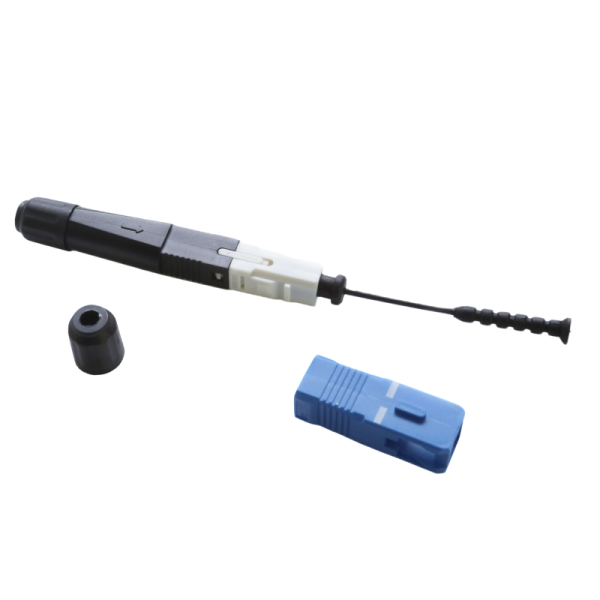

Field Assembly Connector

Field Assembly Connector is a product that can move the manufacturing process of the connector to the site and complete it quickly.

Product Description

The fast connector has two process technologies to ensure its performance, one is mechanical connection technology, and the other is hot melt type. The mechanical splicing technology is to calibrate the core of the two optical fibers through V-groove, capillary and other parts to ensure the accurate anastomosing of the connection parts, without the need for a welding machine, only through a simple splicing tool; The hot melt type requires special hot melt tools.

Product Advantages

Field Assembly Connector — Mechanical type:
No special tools, only equipped with optical fiber stripper and optical fiber cutting knife to achieve assembly operation, reduce equipment investment.Can be opened repeatedly, improve the success rate of construction;Equipped with SC/FC and UPC/APC models, the cable holder supports both 2mm and 2.0mm x 3.0mm butterfly cables, which provides flexible application and convenient inventory.
Field Assembly Connector — Hot-melt type:
Low loss of connection point, improve optical performance;Avoid aging problem of matching liquid, stable performance, long service life, save maintenance costs.It is suitable for 2mm and 2.0mm×3.0mm butterfly cable, which is flexible and broad in application and convenient in stock.

No.	Item	Content	Offered
1	Application scope	Cable	Fiber: G.657; Cable：(K)FRP 2.0×3.0mm drop cable;
2		Type	SC/UPC，SC/APC
2		Type	Single mode
3	Applicable mode
4	Temperature	Usage temperature(℃)	-40℃～+75℃
5	Optical property	Insertion loss（dB）	≤0.3dB
6		Return loss（dB）	≥50dB
7	Tensile strength		≥20N（2 min）
8		Average operation time（S）（Not including fiber peeling and cleaning）	≤30s
9	Others	1.Operation steps（1,2,3）.	Fast operation, no need special auxiliary tools. Operation steps： 1. Use wire stripper to peel off cable’s sheath; 2.Put the stripped cable into the connector chucking appliance; use miller pliers to peel the coating of the spare fiber; 3. Cut fiber with cutting knife; 4. Put the cut-off fiber into connector, fasten the hook and put on the SC cover. The common auxiliary tools: miller pliers, diagonal pliers.
		2.Special auxiliary tools supplying
		methods: charge/free
10		Operation training：free/charge	Free
11		Special tools：free/charge	/

It is suitable for the end of the household optical cable in the corridor and the user’s room in the FTTx deployment.At the same time, it is suitable for the jumper transformation of the equipment room and ODF.

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Field Assembly Connector

Related Products

Related products

Pre-connectorized Optical Cable

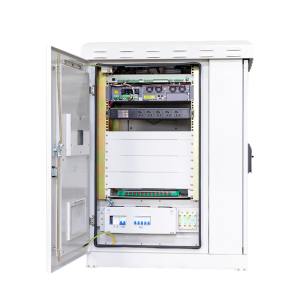

Outdoor Cabinet
