Energy Storage cell

Supported by mature solution design capabilities, lean production management and a complete industrial chain layout, our energy storage batteries are suitable for a full range of power related scenarios. With multiple internationally recognized certifications, the products feature ultra long cycle life, high safety and stability, and can meet energy storage requirements under various power operating conditions.

Product  Description
We are deeply engaged in the R&D and manufacture of energy storage batteries, and have built a standardized and refined system covering product development, production and supply chain management. Custom tailored energy storage solutions can be delivered for diverse application demands. Our energy storage products cover mainstream power storage scenarios on the user side and power generation side, including commercial industrial energy storage, residential energy storage, grid frequency regulation and peak shaving. Certified to UL, UL9540A and TUV standards, our batteries adopt multi-level safety control from cells and modules to systems. The cycle life reaches 4,000~10,000 cycles, and the products operate well under 0.25P-1P power conditions. They can adapt to complex charging discharging modes such as high and low load and short/long term operation, and are compatible with most civil and industrial energy storage projects.
Product  Advantage
  • International certifications & strong compliance: UL, UL9540A and TUV approvals enable our products to satisfy global safety standards and support bidding and deployment of energy storage projects at home and abroad.
  • Ultra long service life & high cost effectiveness: 4,000~10,000 charge/discharge cycles greatly reduce equipment replacement and maintenance costs, delivering outstanding long-term economy.
  • Wide operating compatibility: Supporting 0.25P-1P power rates, the batteries flexibly adapt to light load, normal and heavy load modes with excellent scenario adaptability.
  • High stability, safety and low maintenance: Excellent stability throughout the full life-cycle lowers thermal runaway risks and capacity degradation. Low failure rates during long time operation reduce subsequent maintenance workload.

Number

Product ModelNominal Voltage(V)Nominal Capacity(Ah)Dimension

(mm)

Weight

(kg)

Impedance @1KHz(mΩ)Rated power

/current

Cycle life(25℃)scenario

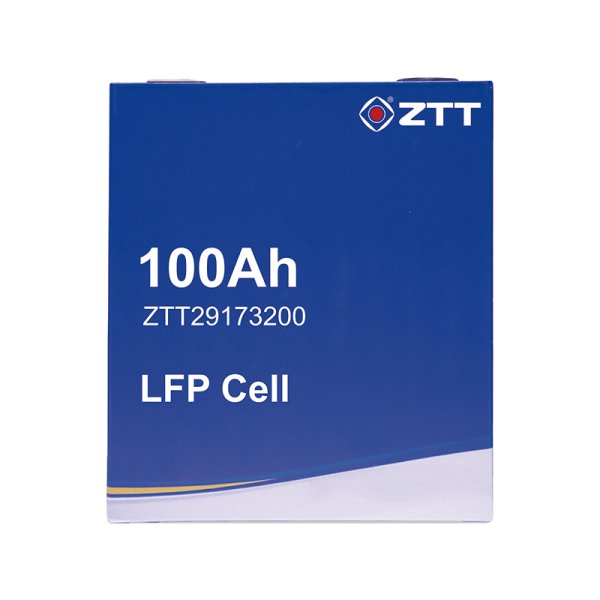

1ZTT291732003.210030*173*2042.1±0.2≤0.80.5P≥6000@70%EOL

Electric energy storage

Household energy storage

2

ZTT541742043.220055*174*2054.0±0.3≤0.351P≥6000@70%EOL

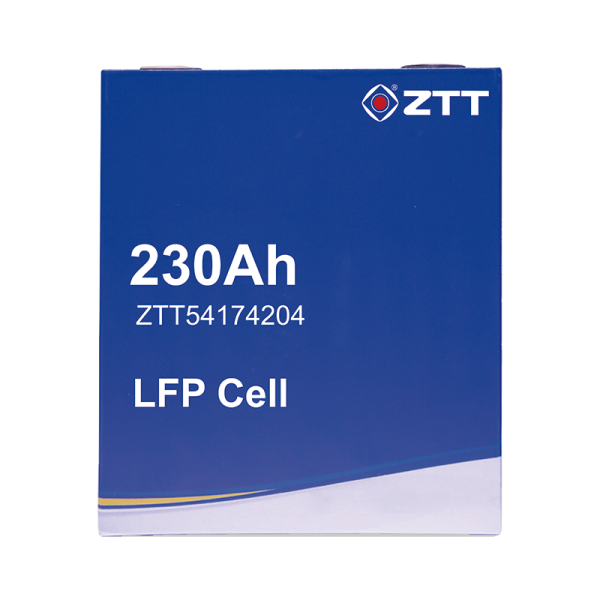

3ZTT541742003.223054*174*2044.1±0.2≤0.30.5P

≥7000@70%EOL

4

ZTT711742043.228073*174*2045.4±0.2≤0.250.5P≥8000@70%EOL

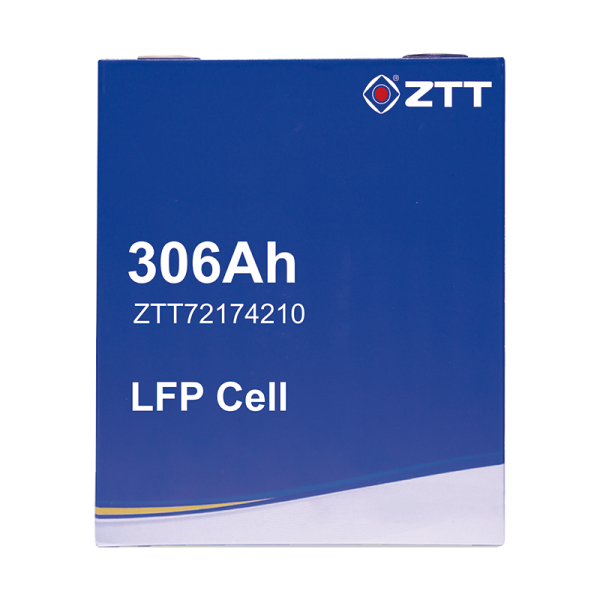

5ZTT711742103.230671*174*2105.4±0.2≤0.250.5P

≥7000@70%EOL

6

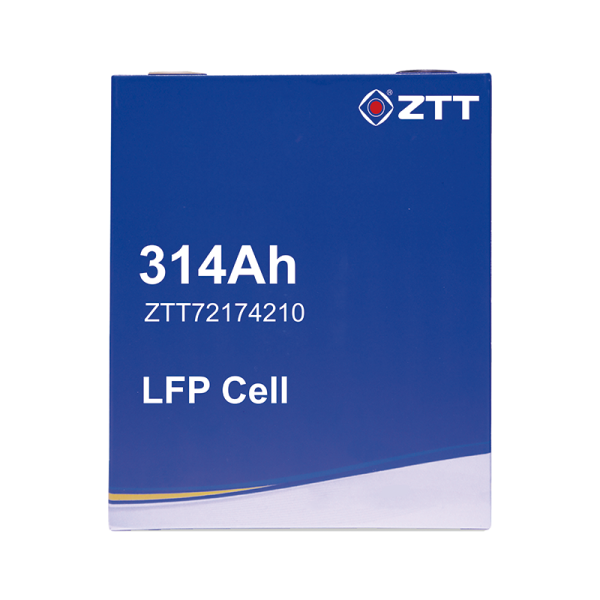

ZTT711742103.231471*174*2105.4±0.2≤0.250.5P

≥7000@70%EOL
