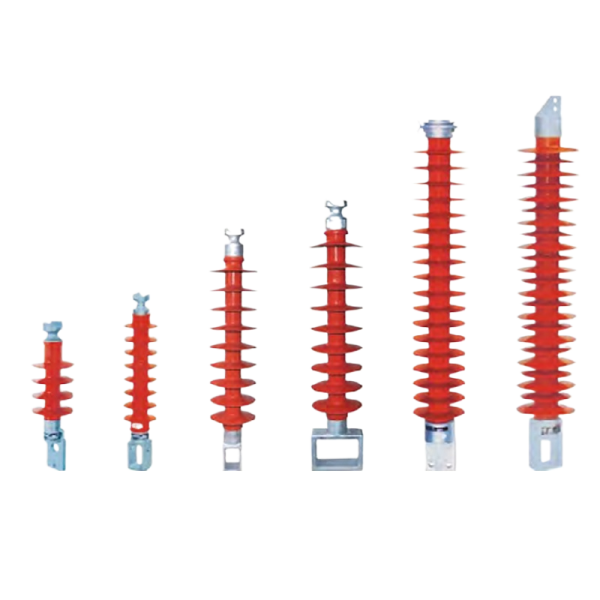

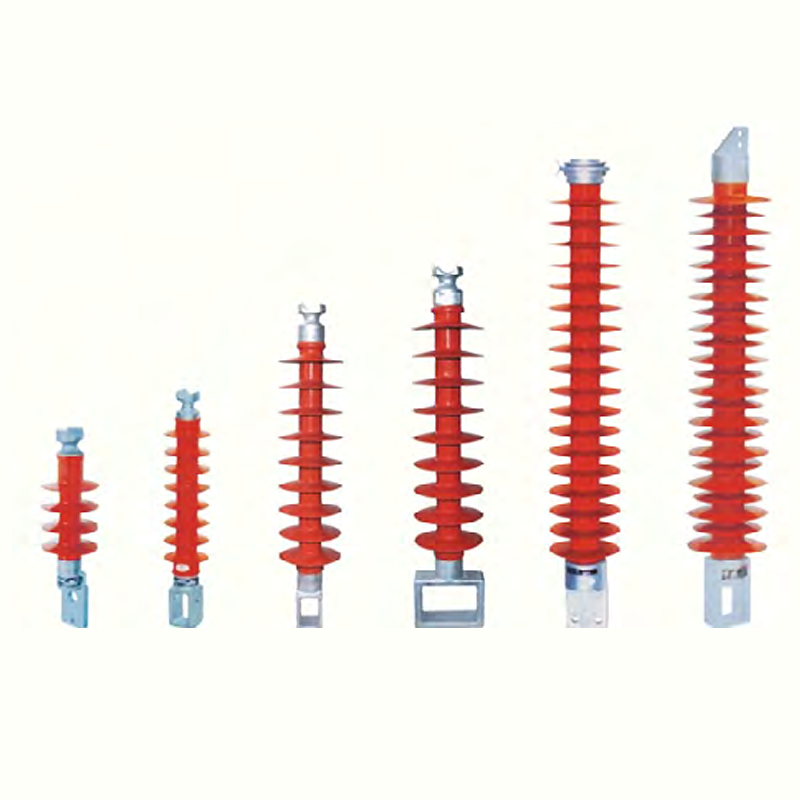

Cross-arm Insulator

This electrical equipment integrates insulation and mechanical support functions, primarily used to fix conductors and provide electrical insulation in overhead transmission lines. It is commonly utilized in narrow corridor redevelopments and capacity-upgrade projects for existing lines.

It has excellent electrical performance and strong anti-pollution flashover capability, which can reduce the occurrence of lightning trip accidents.
It features high strength and light weight. Compared with traditional porcelain cross-arms or other metal cross-arms, the composite cross-arm insulator hasexcellent anti-seismic and anti-impact performance, and can eliminate brittle fracture accidents.
It saves corridor resources. Since itcan effectively utilize narrow corridors for step-up power transmission, it is suitable for urban network technical transformation. And it can reduce the height of poles and towers and narrow the width of transmission line corridors.
It is maintenance-free,has a long service lifeand requires no manual cleaning.

Type	Rated Voltage (kV)	Specified Mechanical Bending Load (kN)	Section Length (mm)	Min Arcing Distance (mm)	Min Creepage Distance (U/mm)	Lightning Withstand Voltage (kV)	Wet Power Frequency Voltage (kV)
FS – 10/2.5	10	2.5	460	320	400	150	60
FS – 10/5	10	5	460	320	400	150	60
FS – 10/8	10	8	487	320	600	150	60
FS – 35/5	35	5	620	450	1050	230	95
FS – 35/8	35	8	630	450	1050	230	95
FS – 66/6	66	6	880	700	2000	410	185
FS – 66/8	66	8	1200	700	2000	410	185
FS – 110/2.5	110	2.5	1210	1030	2520	550	230
FS – 110/5	110	5	1268	1030	3150	550	230
FS – 110/8	110	8	1268	1080	3150	550	230
FS – 110/10	110	10	1268	1080	3150	550	230
FS – 220/2.5	220	2.5	2620	2312	6850	1000	395

This product for the urban net rebuild can effectively solve the shortage of corridor in urban power line; reduce the pole height and economy lots of financial and material resources. Because of the high strength, to avoid the porcelain cross-arm causes to concatenate breakage of high strength accident and fine anti-pollution. And the products of porcelain cross-arm cannot replace it.

Let’s Build The Future with Innovation

Please provide the following details to help our sales representatives better understand your needs and get In touch with you as soon as possible.

Cross-arm Insulator

Related Products

Related products

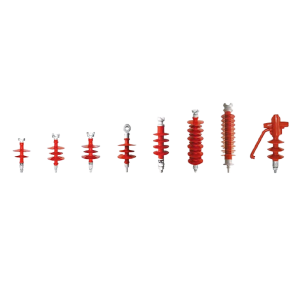

Pin Insulator

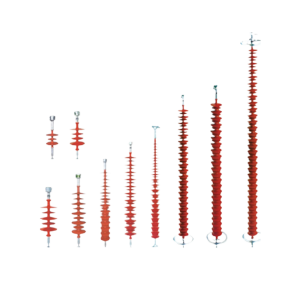

Rod-type Suspension Composite Insulator
