The stainless steel tube is hermetically sealed by seamless welding; the central stainless steel tube is surrounded by single or double layers of metal wires. The tube is filled with water resistant gel. This tube provides complete protection to the fibers from longitudinal and lateral water/moisture ingress. The interstices in between the stainless steel tube and the metallic wires are filled with anticorrosive grease for protection from corrosion.
IEC 60794-4-1 | Aerial optical cables along electrical power lines – Family specification for OPGW |
| IEEE1138-2009 | IEEE Standard for testing and performance for optical ground wire (OPGW) for use on electric utility power lines |

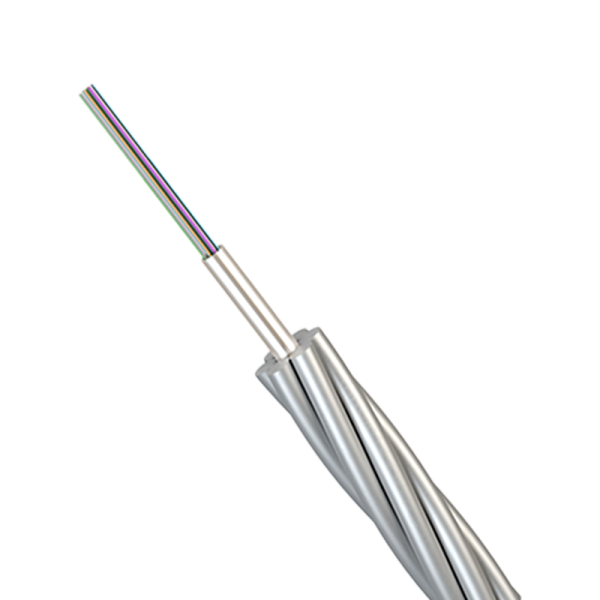

Singer Layer Central Type Stainless Steel Tube OPGW
| Type | Max. Core:G652 | Max. Core:G655 | OD (mm) | Weight(kg/km) | RTS (kN) | Short Circuit Capacity(kA2S) | Package:4km/drum (m*m) |
| OPGW-1C-32 [40.6;4.7] | 12 | / | 7.8 | 228 | 40.6 | 4.7 | 1.2*1.1 |
| OPGW-1C-42 [54.0;8.4] | 24 | 16 | 9 | 303 | 54 | 8.4 | 1.2*1.1 |
| OPGW-1C-42 [43.5;10.6] | 24 | 16 | 9 | 274 | 43.5 | 10.6 | 1.2*1.1 |
| OPGW-1C-54 [67.8;13.9] | 36 | 30 | 10.2 | 389 | 67.8 | 13.9 | 1.3*1.1 |
| OPGW-1C-54 [55.9;17.5] | 40 | 30 | 10.2 | 351 | 55.9 | 17.5 | 1.3*1.1 |
| OPGW-1C-61 [73.7;17.5] | 48 | 40 | 10.8 | 433 | 73.7 | 17.5 | 1.3*1.1 |
| OPGW-1C-61 [62.7;22.0] | 48 | 40 | 10.8 | 391 | 62.7 | 22 | 1.3*1.1 |
| OPGW-1C-68 [80.8;21.7] | 60 | 48 | 11.4 | 480 | 80.8 | 21.7 | 1.3*1.1 |
| OPGW-1C-75 [86.7;26.6] | 66 | 58 | 12 | 534 | 86.7 | 26.6 | 1.4*1.1 |

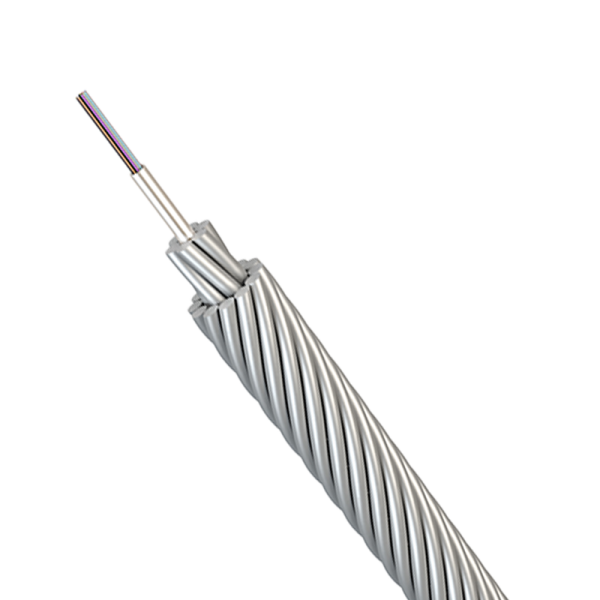

Double Layer Central Type Stainless Steel Tube OPGW
| Type | Max. Core:G652 | Max. Core:G655 | OD (mm) | Weight(kg/km) | RTS (kN) | Short Circuit Capacity(kA2S) | Package:4km/drum (m*m) |
| OPGW-2C-96 [121.7;42.7] | 12 | / | 13 | 656 | 121.7 | 42.7 | 1.2*1.1 |
| OPGW-2C-127 [141.0;89.1] | 24 | 16 | 15 | 815 | 141 | 89.1 | 1.3*1.1 |
| OPGW-2C-127 [79.0;129.6] | 24 | 16 | 15 | 537 | 79 | 129.6 | 1.3*1.1 |
| OPGW-2C-145 [121.0;133.9] | 30 | 26 | 16 | 847 | 121 | 133.9 | 1.3*1.1 |
| OPGW-2C-163 [138.2;185.9] | 40 | 30 | 17 | 905 | 138.2 | 185.9 | 1.4*1.1 |
| OPGW-2C-163 [99.9;213.7] | 40 | 30 | 17 | 689 | 99.9 | 213.7 | 1.4*1.1 |
| OPGW-2C-183 [109.7;268.7] | 48 | 40 | 18 | 770 | 109.7 | 268.7 | 1.4*1.1 |
| OPGW-2C-183 [118.4;265.1] | 48 | 40 | 18 | 890 | 118.4 | 265.1 | 1.4*1.1 |
| Type | Central Type Stainless Steel Tube OPGW |
| Fiber Core | 8/12/16/24/36/48/96 |
| Application | photovoltaic/wind power plant/transmission line/substation |
