Characteristics: -Anti-corrosion and reliability. -High strength/weight ratio for big span, adjustable aluminum/steel ratio of cross section. -Long life span, safety under severe conditions.Standard:
| IEC 61089 | Round wire concentric lay overhead electrical stranded conductors |
| EN IEC 63248 | Conductors for overhead lines – Coated or cladded metallic wire for concentric lay stranded conductors |
| EN 50182 | Conductors for overhead lines – Round wire concentric lay stranded conductors |

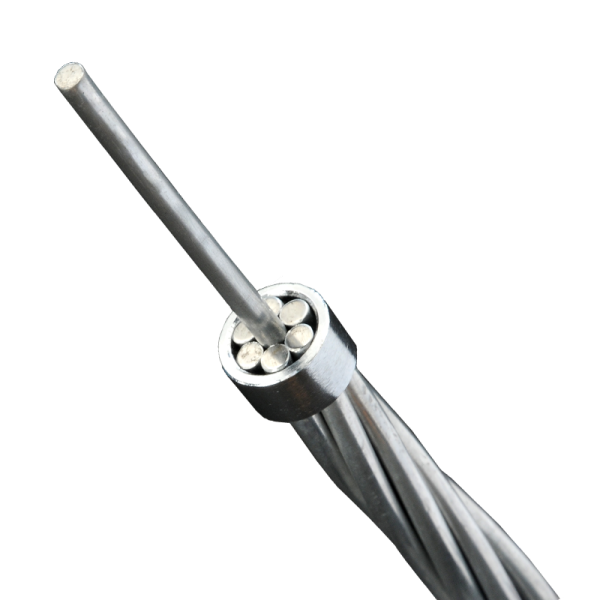

| ASTM B416 | Concentric-Lay-Stranded Aluminum-Clad Steel Conductors |
| Other international standards according to customers’ requirements | |
| Code Name | Cross Section (mm2) | Structure (Nos./mm) | Nominal Diameter of Conductor (mm) | Nominal Weight (kg/km) | Rated Tensile Strength (kN) | Max. DC Resistance @20℃ （Ω/km） |
| 37No. 8AWG | 309.59 | 37/3.264 | 22.85 | 2081.0 | 495.4 | 0.2794 |
| Other designs according to customers’ requirements | ||||||
Serve as ground wires for overhead line, suitable for environment of seaside, corrosion area, crossing mountains or rivers.
