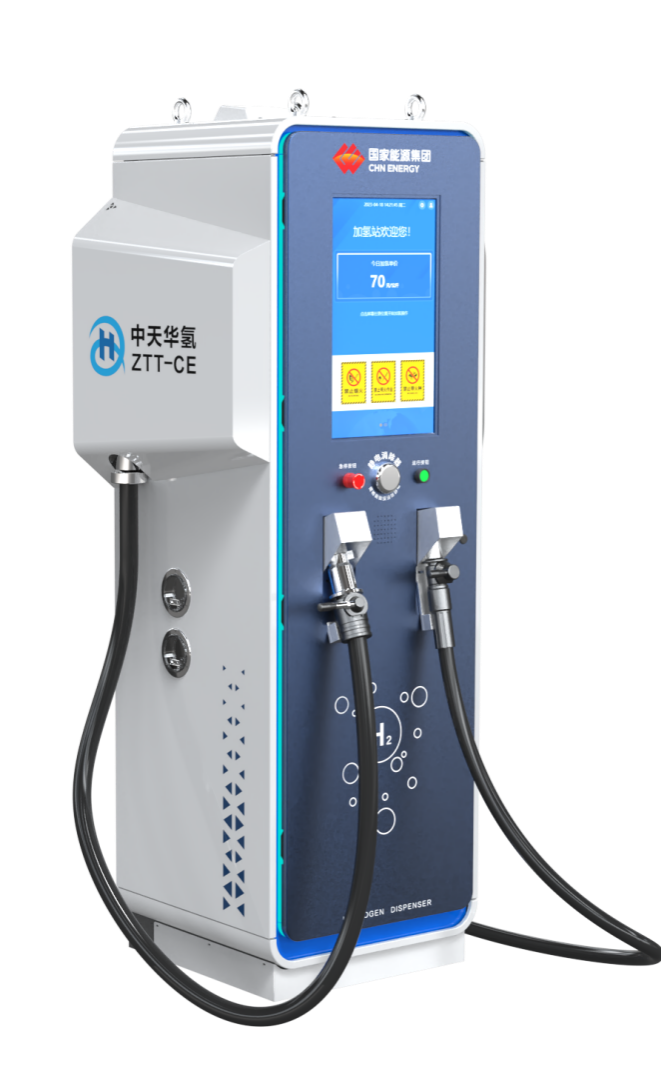

H2 DISPENSER
1. SAE J2601 filling protocol met and TUV certification obtained
2. Flow automatic control adjustment function to ensure the maximum gas flow and the safety of vehicle cylinder temperature rise
3. Air pressure limiting protection, safe pressure relief, emergency cut-off
4. Communication interface to monitor the state of hydrogenator remotely and realize network management
5. Hydrogenation process has smart self-check function, vehicle tank volume measurement error less than 10%, process leakage safety alarm
6. During hydrogenation process, hydrogenation rate, display gas filling, filling amount and unit are automatically adjusted.
7. Super storage, dispenser can store and query the latest 3,000 hydrogen fueling data. If equipped with the computer management system of the upper computer, the hydrogen fueling data for the past three years can be queried.
8.It is listed on the first set of major equipment list of the National Energy Administration (2021) , and in the Recommended catalogue of scientific and technological innovation achievements of central enterprises (2022) published by the State-owned Assets Supervision and Administration Commission of the State Council.
Rated working pressure | 35MPa | 70MPa |
Measuring accuracy (flowmeter) | ±1%(RHEONIK Coriolis mass flow meter) |
Maximum working pressure | 43.8MPa | 87.5MPa |
Point-of-Sale (POS) interface | IFSF 2.32 and Gilbarco Two-Wire Protocol |
Inlet connection | Hydrogen Connection=9/16’’ C&T MP |
Explosion-proof grade | Ex db eb ib mb IIC T4 Gb(Corresponding to IEC60079） |
Ambient temperature | -20℃ ~ + 40℃ |
Relative humidity | 14% ~ 100% |
Weight | 580Kg | 610Kg |
Nozzle Design | WEH TK16/TK25 | WEH TK17 |
Protection Rating | IP55 |
Size | Length | 730mm |
Width | 970mm |
Height | 2250mm |
Flow range | 0.18Kg/min to 3.6Kg/min |

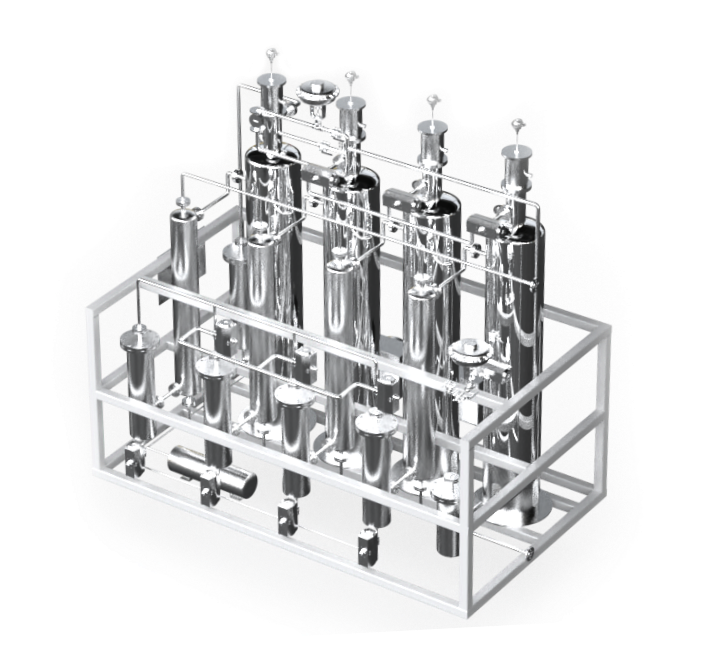

Hydrogen Purification Equipment
1.High efficiency CO directional removal material, trace CO capacity up to 8.5ml /g, more than 10 times the amount of existing adsorbent, service life≥5 years
2.The modular purification process with independent intellectual property rights, unit and system optimization for coal-based by-product gas, H2 yield can be increased by 4.5%
3.Preparation of 1000Nm3/h modular purification process package, hydrogen yield ≥80%; FCV H2≥99.97%, CO≤0.2ppm
Model | ZCZ10 | ZCZ50 | ZCZ100 | ZCZ200 | ZCZ500 | ZCZ1500 | ZCZ3000 | ZCZ6000 |
Capacity(m³/h) | 10 | 50 | 100 | 200 | 500 | 1500 | 3000 | 6000 |
Working pressure (MPa) | 1.6-3.2 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 | 0.8-1.6 |
Operating temperature | Deoxygenation(℃) | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 | 80-100 |
Drying(℃) | 10 | 10 | 10 | 10 | 10 | 10 | 10 | 10 |
Regeneration(℃ ) | 250 | 250 | 250 | 250 | 250 | 250 | 250 | 250 |
Cooling water consumption（ t/h ） | 1.5 | 1.5 | 3.0 | 4.0 | 6.0 | 18.0 | 35.0 | 70.0 |
Power consumption( KW ) | 3 | 6 | 9 | 18 | 24 | 72 | 120 | 210 |
Meter gas consumption(m3/h ) | 2 | 2 | 3 | 3 | 3 | 5 | 8 | 10 |
Product gas | Dew point | ≤-70℃ | ≤-70℃ | ≤-70℃ | ≤-70℃ | ≤-70℃ | ≤-70℃ | ≤-70℃ | ≤-70℃ |
Oxygen content（ppm) | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 | ≤2 |
 Control mode
| PLC fully automatic |
Overall dimension L×W×H (m) | 2×1×2.5 | 2×1.5×2.5 | 2.8×1.8×2.8 | 3.2×1.8×2.8 | 3.7×1.8×2.8 | 4.8×2.2×3.2 | 4.8×2.2×3.2 | 6.0×2.5×3.5 |
Weight（t） | 1.0 | 2.0 | 3.0 | 3.5 | 4.5 | 6.0 | 6.5 | 10 |

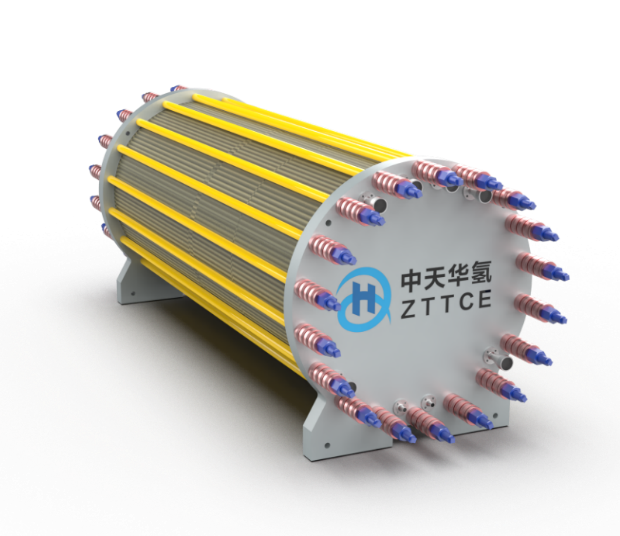

ALKALINE WATER ELECTROLYZER
1.Full automatic control, no people needed
2.Requirements of GB50177 code for Hydrogen station design specification met
3.High gas production pressure, usually designed as per 1.6Mpa and can be customized according to customers’ requirements
4.Safe: The control system is quipped with error proof operation to prevent error operation and prevent safety risks.
5. The products can be provided according to customers’ requirements and the equipment EPC.
Type | ZDQ-10 | ZDQ-50 | ZDQ-100 | ZDQ-200 | ZDQ-300 | ZDQ-400 | ZDQ-500 | ZDQ-800 | ZDQ-1000 |
Hydrogen output（Nm³/h） | 10 | 50 | 100 | 200 | 300 | 400 | 500 | 800 | 1000 |
Working pressure（MPa） | 1.6（adjustable） |
Operating temperature（℃） | 85-95 |
Dc power consumption（kWh/Nm³） | 4.0~4.5 |
Floor area（m²） | 60 | 95 | 190~270 | 210~300 | 230~315 | 250~340 | 250~350 | 340~480 | 450~640 |
System efficiency（%） | 70-80 |
Load range（%） | 30-110 |
Hydrogen purity（%） | Before purification：99.8；after purification：99.999 |
Oxygen purity（%） | ≥98.5 |
Weight（KG） | 1500 | 6500 | 11000 | 16500 | 24500 | 29500 | 34000 | 40000 | 46500 |

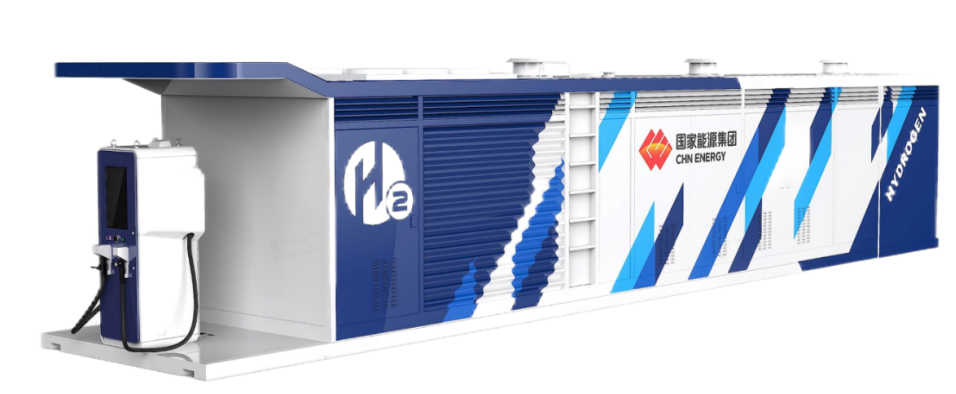

Integrated Hydrogenation Station
1.The first skid-mounted fully integrated hydrogen refueling station in China, an explosion-proof skid-mounted hydrogenation device for the whole machine, and an integrated skid-mounted explosion-proof cold water system.
2.Comply with SAE J2601 filling protocol, outlet temperature -33~-40℃.
3.AI intelligent monitoring system, standardized operation, and infrared data communication ensure the safety of the pressure and temperature of the on-board hydrogen bottle.
4.Compared with the traditional hydrogenation station, it has the advantages of strong mobility, shortened station construction period and reduced station area.
Name | Technical parameter |
Exhaust volum (Kg/12hr，12.5MPaG) | 260 |
Intake pressure(MPaG) | 5~20 (Before filtering) |
Outlet pressure(MPaG，Max) | 90 |
Intake temperature (℃) | <45 (Extreme) |
Exhaust temperature(℃) | ≤40（Compressor final outlet temperature) |
Hydrotreater Outlet temperature(℃) | -33~-40 |
Total power (kW) | 60 |
Compressor type | Liquid drive oil-free piston type |
Cooling mode | Water cooling |
Explosion-Proof rating | ExdII CT4 |
Service ambient temperature (℃) | -25℃~50℃ （Statement needed if it is out of range, customizable) |
Overall dimension (mm) | 15000×3000×4000 |

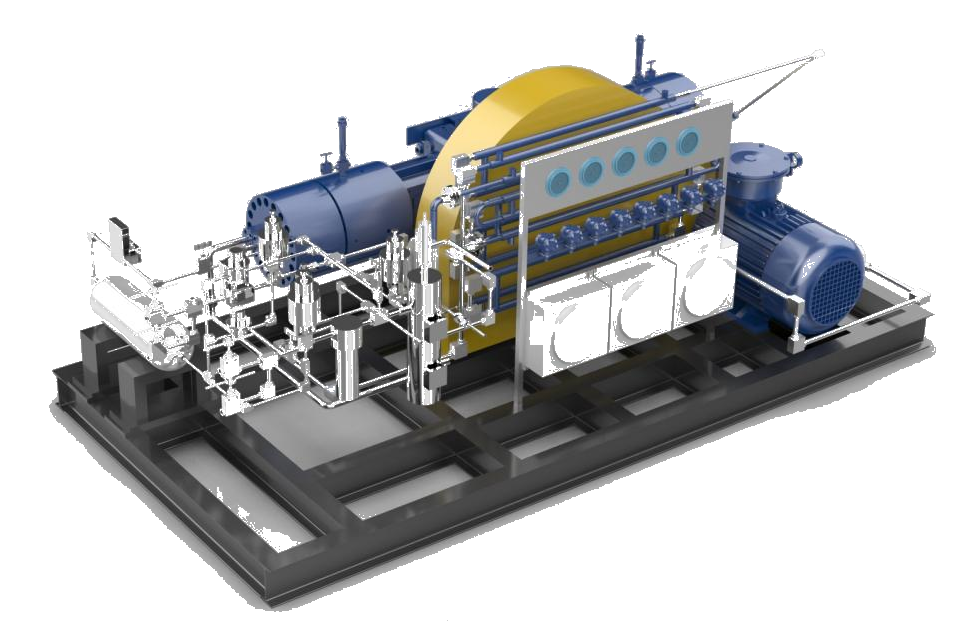

Diaphragm compressor
1.Based on precision design thought, for the first time, the diaphragm compressor overall design and core part design technology are achieved.
2.Breakthroughs in gas-liquid-solid coupling technology, diaphragm surface treatment technology, high pressure hydraulic plunger technology
3.The first in China: outlet pressure 87.5MPa, discharge capacity 500Nm3/ h@12MPa
Parameter Application Application Application scenario Application scenario | 45MPa Hydrogenation station | 90MPa Hydrogenation station | Hydrogen filling tank truck | Hydrogen filled bottle | High-pressure hydrogen transfer |
Intake pressure（MPa） | 3~20 | 10~30 | 0.8~3 | 0.1~3 | 0.8~3 |
Exhaust pressure（MPa） | 45 | 90 | 20~22 | 15~20 | 5~20 |
Exhaust volume（Nm³/h） | 200~2000 | 100~1000 | 300~2000 | 10~800 | 100~1500 |
Compression level | 1~2 | 1~2 | 1~3 | 1~2 | 1~2 |
Motor power（KW） | 30~200 | 30~185 | 75~315 | 3~160 | 22~200 |
