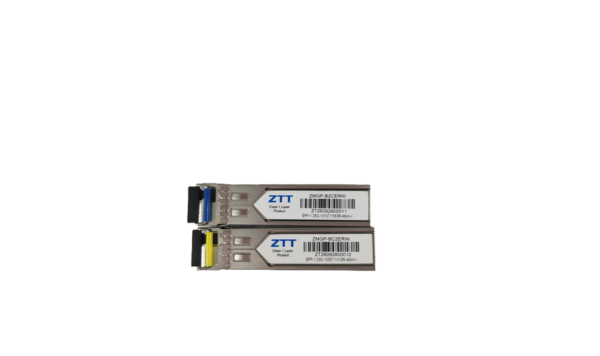

SFP 1,25G BIDI 1310/1550nm 40km

ZMGP-BC2(2C)ERNx optical transceivers are based on Gigabit Ethernet IEEE 802.3 standard and Fiber Channel FC, providing a fast and reliable interface for GE/FC applications. The product implements digital diagnostics via a 2-wire serial bus，compliant with the Small Form Factor Pluggable Multi-Source Agreement (MSA)and SFF-8472 standard.

Up to 1.25Gbps data link
Integrated single fiber bi-direactional optical subassembly
Hot- pluggable SFP footprint
LC pluggable optical interface
Low power dissipation
Metal enclosure, for lower EMI
Single +3.3V power supply
Optional 40kmtransmission distance on 9/125um SMF
Optional operating temperature range: 0~+70℃/-40~85℃
ROHS compliant and lead-free

Numéro de pièce	Spécifications
Numéro de pièce	Paquet	Taux (Gbps)	Tx (nm)	Po (dBm)	Rx	Sen (dBm)	Tc (℃)
ZMGP-B2CERNI	SFP	1.25	1310	-5 ~0	PIN/TIA	-24	-40 ~ 85
ZMGP-BC2ERNI	SFP	1.25	1550	-5 ~0	PIN/TIA	-24	-40 ~ 85
ZMGP-B2CERNC	SFP	1.25	1310	-5 ~0	PIN/TIA	-24	0 ~ 70
ZMGP-BC2ERNC	SFP	1.25	1550	-5 ~0	PIN/TIA	-24	0~ 70
