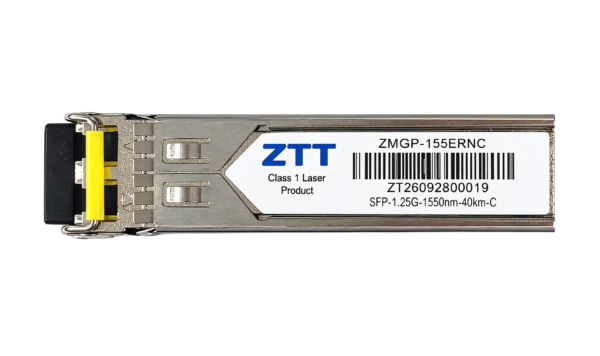

SFP 1.25G Dual 1550нм 40км

ZMGP-155ERNx optical transceivers are based on Gigabit Ethernet IEEE 802.3 standard and Fiber Channel FC, providing a fast and reliable interface for GE/FC applications. The product implements digital diagnostics via a 2-wire serial bus, compliant with the Small Form Factor Pluggable Multi-Source Agreement (MSA)and SFF-8472 standard.

  • Up to 1.25Gbps data rate
  • Duplex LC receptacle optical interface compliant
  • Single +3.3V power supply
  • Hot-pluggable
  • Receiver Loss of Signal Output
  • Serial ID module on MOD (0-2)
  • International Class 1 laser safety certified
  • Transmitter disable input
  • Optional operating temperature range: 0~+70℃/-40~85℃
  • Up to 40km transmission distance on 9/125um SMF
  • RoHS Compliant

Номер детали

Спецификации

Упаковка

Скорость

(Гбит/с)

Tx

(нм)

По

(дБм)

RxSen

(дБм)

Tc

(℃)

ZMGP-155ERNI

SFP1.251550-5 ~ 0PIN/TIA-24

-40 ~ 85

ZMGP-155ERNCSFP1.251550-5 ~ 0PIN/TIA-24

0 ~ 70

  • Gigabit Ethernet
  • SDH
  • Switched backplane applications
