Power cell

Our power oriented batteries feature high stability, superior safety and high energy density with industry leading performance indicators. Custom built batteries of various models, capacities and performance grades can be provided to match different equipment, widely serving low speed power machinery.

Product  Description
We focus on the R&D and customized production of power lithium ion batteries. Our high energy density, safe and stable power battery solutions address common drawbacks of conventional power batteries, such as short driving range, rapid capacity fading and insufficient safety protection. Based on our mature battery development system, we deliver one to one customized power battery schemes according to customer specific equipment parameters, mileage requirements and workload intensity. The products are widely applied to two- wheeler, three-wheeler, mining vehicles and other low speed power equipment for civilian commuting, factory transportation, mining site operation and other scenarios. Boasting excellent safety performance and stable charge discharge behavior with slow capacity degradation, the batteries can satisfy frequent, daily operation demands of power equipment.
Product  Advantage
  • High energy density for extended mileage: Higher energy density delivers longer driving range under the same weight and volume.
  • Superior safety & stability under tough conditions: Strong resistance to impact, overheating and degradation, suitable for mining, commuting and other complex working environments.
  • High degree customization: Flexible customization of model, capacity and performance parameters to fit different brands and specifications of power equipment.
  • Strong overall practicality: Balanced safety, driving range and service life with simple maintenance, ideal for mass supply to civil and industrial power equipment manufacturers.

Number

Product ModelNominal Voltage(V)Nominal Capacity(Ah)Размер

(мм)

Вес

(kg)

Impedance @1KHz(mΩ)Rated power

/current

Cycle life(25℃)

scenario

1

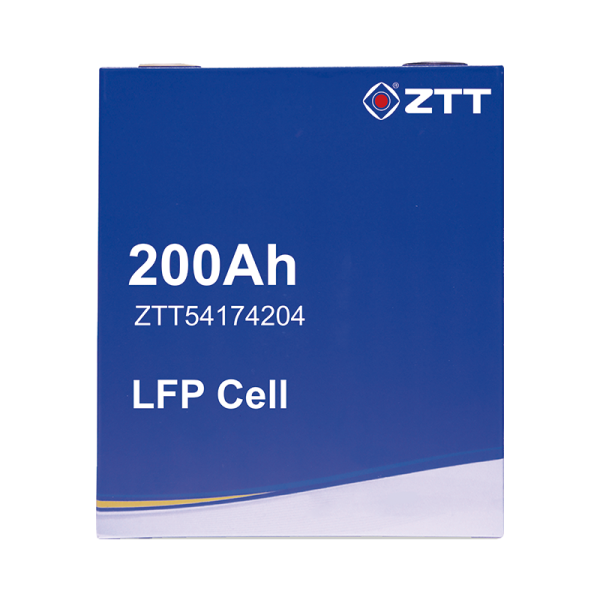

ZTT541742043.220055*174*2054.0±0.3≤0.350.5C≥4000@80%EOLConstruction vehicle

lowspeedvehicle

2ZTT541742003.223054*174*2044.1±0.2≤0.30.5C

≥4000@80%EOL

3

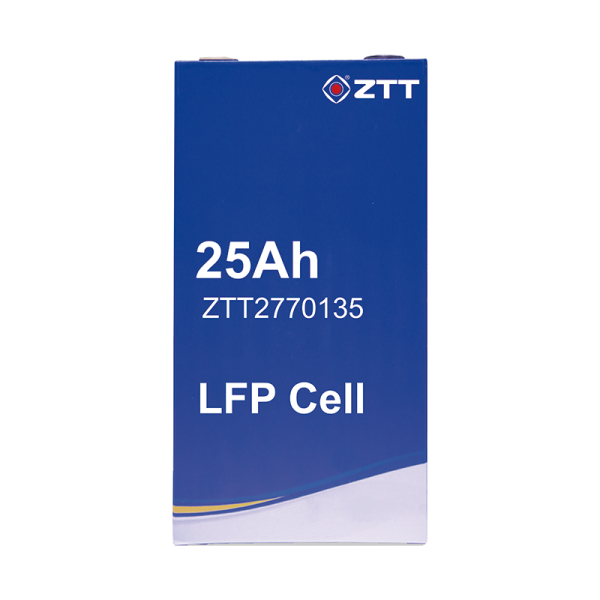

ZTT27701353.22527*70*1350.55±0.05≤3.00.5C≥2000@80%EOL

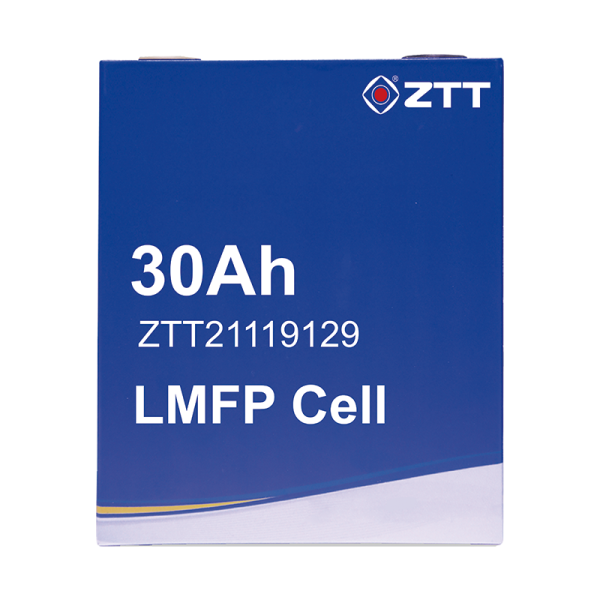

4ZTT211191293.73021*119*1290.71±0.05≤3.00.5C

≥1500@80%EOL
