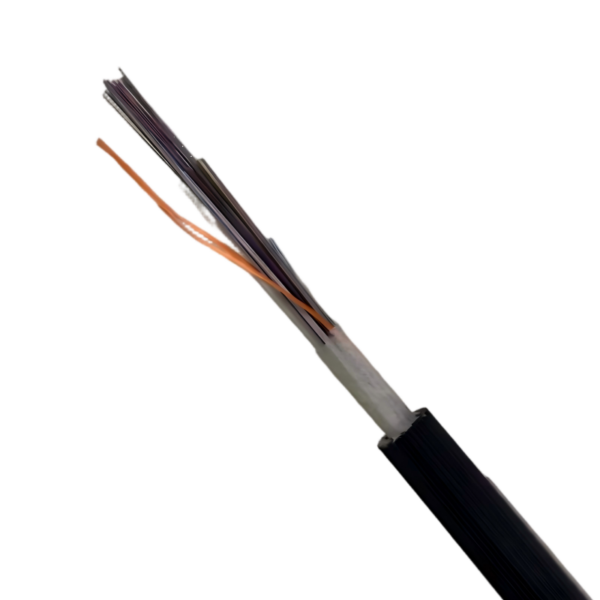

Cable de Cinta Rápido

El cable óptico de cinta rápida, basado en el uso de unidades de fibra de malla enrollables para reemplazar las unidades de cinta de fibra completamente recubiertas tradicionales, logra una alta densidad de producto. Dependiendo de diferentes escenarios de aplicación y métodos de instalación, se derivan varios tipos de productos de cable óptico de alta densidad.

Product Description

Speedy ribbon optical cable use multiple intermittent ribbons to achieve a optical cable with high fiber count. The optical cable could be designed and manufactured as various structures for different applications, including high strength for duct pulling installation, all-dielectric and light structure for air blowing installation, and armored structures for strengthen, rough and extreme environment.

Ventajas del Producto

Environment-friendly design with all dry material, but excellent water blocking performance;
Using different color binder yarns to identify different ribbon groups in cable core;
Easy fusion for fiber ribbons, save installation time and labor cost;
Reduce the cable outer diameter more than 30% and improve the fiber density higher than 200% under the same fiber count;
Professional production technology, meet the EN, ITU, IEC and other relevant standards.

No of Fiber	Nominal Cable diameter （mm）	Cable weight ±15% (kg/km)	Tensile load (N)	Crush load (N/100mm)
144	11.5	99	1500	2000
288	12.0	120	1500	2000
432	13.0	145	1500	2000
864	15.5	200	2000	2000
1008	17.0	225	2000	2000

Note: the cable type and structure could be customized by different requirements.

Installation method: Duct, Air blown.
Operating temperature:
Storage and operation: -40℃ to +70℃ Laying: -10℃ to +60℃.
Bending radius:
Static: 15 times the cable diameter; Dynamic: 30 times cable diameter.
