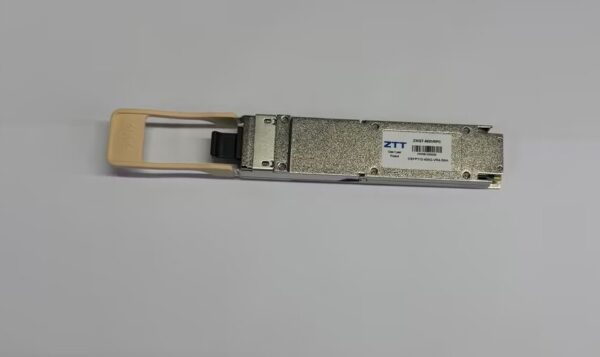

OSFP112 400G MPO12 VR4 850nm 50m

The ZMQT-850VRPC 400G OSFP VR4 transceiver is designed for Ethernet 400GBASE-SR4 applications. The module integrates four identical and independent lanes which provides a point-to-point 400Gb/s link over OM4 multimode fiber up to 50m. This makes it an ideal low-cost solution for short reach data center optical interconnects.

  • Hot pluggable OSFP Type form factor
  • Supports up to (4×106.25Gbps) 425Gb/s aggregate bit rate
  • 850nm VCSEL laser and PIN receiver
  • Link length up to 30m on OM3 or 50m on OM4
  • Single 3.3V power supply
  • Power dissipation≤10W
  • Operating case temp Commercial: 0°C to +70 °C
  • MPO-12/APC connector
  • Compliant to 400G OSFP MSA and CMIS5.0
  • RoHS compliant

Número de parte

Especificaciones
PaqueteTasa

(Gbps)

Wave Length

(nm)

Reach

(m)

Fiber Tipo

Tc

(℃)

ZMQT-850VRPC

OSFP-RHS4×10085050MMF

0~70

  • 400GBASE-VR4 400G Ethernet
  • Breakout to 2x200G Ethernet
  • Breakout to 4x100G Ethernet
