OSFP 800G MPO16 SR8 850nm 100m

The ZMVT-850SRPC is an eight-Channel, Pluggable, Parallel transceiver for 800 Gigabit Ethernet Applications. It integrates 8 independent transmit and receive channels, each lane can operate at 106.25Gb/s for an aggregate data rate of 850Gb/s up to 60 m using OM3 fiber or 100 m using OM4 fiber with FEC.

Hot pluggable OSFP form factor
Single MPO-16 APC connector
850nm VCSEL laser and PIN receiver
Transmission distance options up to 100m on OM4 fiber
Data rate up to 106.25G per channel
Supports up to (8×106.25Gbps) 850Gb/s aggregate bit rate
Single 3.3V power supply
Power dissipation≤16W
Operating case temp Commercial: 0°C to +70 °C
Compliant to 800G OSFP MSA and CMIS5.0
RoHS compliant

Número de parte

Especificaciones

Paquete

Tasa

(Gbps)

Wave Length

(nm)

Reach

(m)

Latch Color

(℃)

ZMVT-850SRPC

OSFP

8×100

850

100

Beige

0~70

800G Ethernet
InfiniBand NDR

Productos Relacionados

Construyamos el Futuro

Por favor, proporcione los siguientes detalles para ayudar a nuestros representantes de ventas a comprender mejor sus necesidades y ponerse en contacto con usted lo antes posible.

OSFP 800G MPO16 SR8 850nm 100m

Productos Relacionados

Productos relacionados

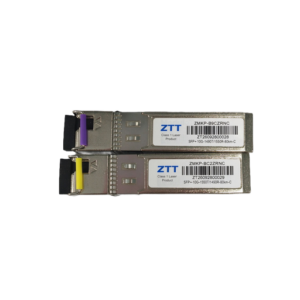

SFP+ 10G BIDI 1490/1550nm 80km
