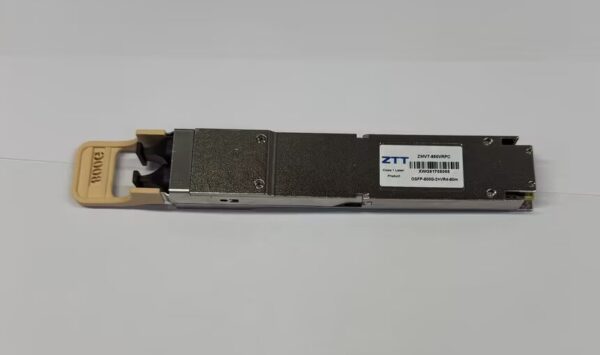

OSFP 800G 2xMPO12 2xVR4 850nm 50m

The ZMVT-850VRPC is an eight-Channel, Pluggable, Parallel transceiver for 800 Gigabit Ethernet Applications. It integrates 8 independent transmit and receive channels, each lane can operate at 106.25Gb/s for an aggregate data rate of 850Gb/s up to 30 m using OM3 fiber or 50 m using OM4 fiber with FEC. The optical interface uses dual MPO-12 connector.

Hot pluggable OSFP form factor
Dual MPO-12 APC connector
850nm VCSEL laser and PIN receiver
Transmission distance options up to 50m on OM4 fiber
Data rate up to 106.25G per channel
Supports up to (8×106.25Gbps) 850Gb/s aggregate bit rate
Single 3.3V power supply
Power dissipation≤16W
Operating case temp Commercial: 0°C to +70 °C
Compliant to 800G OSFP MSA and CMIS5.0
RoHS compliant

Número de parte

Especificaciones

Paquete

Tasa

(Gbps)

Wave Length

(nm)

Reach

(m)

Latch Color

(℃)

ZMVT-850VRPC

OSFP

8×100

850

Beige

0~70

800G Ethernet
InfiniBand NDR
